Busch-Jaeger 2CKA001413A1114 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

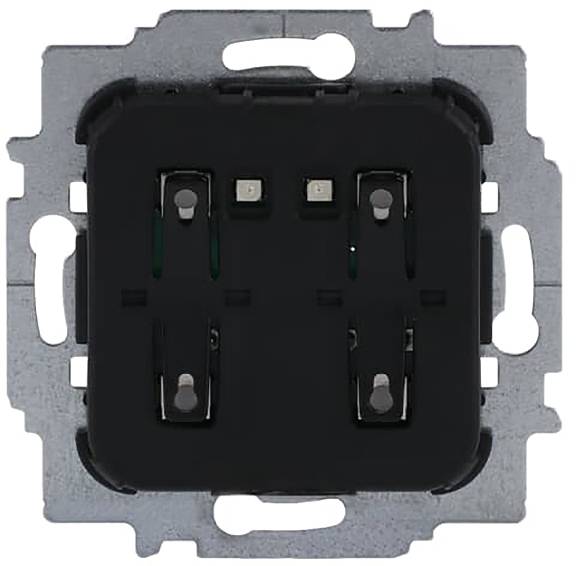

Busch-Jaeger Electronic feeler 2058 UK
- Busch & Jaeger Switch Product Range
Technical specifications
- With mounting plate: Yes
- Mounting depth: 32 mm
- Rated current 0.05 A
- Mounting type: Flush-mounted
- Material: Plastic
- Colour, black
- Surface protection: Untreated
- Design of surface: Matt
- Nominal voltage: 24 V
- Type of connection: Screw terminal
- Halogen-free: No.
- Min Depth of the device socket 32 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- Mounting type: Screw fixing
- Antibacterial treatment: No.
- RAL number (similar): 9005
- Suitable for protection class (IP): IP20
- Text field/label area: No.
- Assembly: Base element
- Device width 71 mm
- Device height 71 mm
- Device depth 33.79999999 mm
- Operating mode rocker/button
- Number of operating rockers: 2
- Feedback contact: No.
- Series switch type
- Push button: No
- Lighting: Yes
- Lighting function: Other
- Heating switch: No.
- Washing machine switch: No.
- Lighting type: Other
- Type
Busch-Jaeger Electronic feeler 2058 UK
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544124 Busch-Jaeger 2CKA001413A1114 1 pc(s)
Description
For operation on a SELV control system, e.g. in room controllers, room boxes or central control units.
For use in functional buildings e.g. in hotels, schools and office buildings.
For switching or dimming of lighting or for blinds operation in connection with the respective control system.
Pre-wiring via the accompanying terminal block.
As per the connection diagram.
Connection via connection block for flexible and rigid wires (up to 1.5 qmm).
IP20
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
This text is machine translated.
For use in functional buildings e.g. in hotels, schools and office buildings.
For switching or dimming of lighting or for blinds operation in connection with the respective control system.
Pre-wiring via the accompanying terminal block.
As per the connection diagram.
Connection via connection block for flexible and rigid wires (up to 1.5 qmm).
IP20
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
This text is machine translated.
