Busch-Jaeger 2CKA001751A3168 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger doorbell button one. DND/MUR 2029 UC-82
- Busch & Jaeger Switch Product Range
Technical specifications
- Number of poles: 1
- Rated current 10 A
- Design: Single button
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Surface design: Glossy
- Nominal voltage: 250 V
- Connection type: Plug-in terminal
- Halogen-free: Yes
- Number of contacts as N/O contacts: 1
- With signal lamp: Yes
- Min Depth of the device socket 27 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With bulb: Yes
- Material quality: Thermoplastic
- Mounting type: Screw fixing
- Antibacterial treatment: No.
- RAL number (similar): 1013
- Suitable for protection class (IP): IP20
- Text field/label area: No.
- Assembly: Base element with central cover plate
- With illumination: Yes
- Device width 63 mm
- Device height 63 mm
- Device depth 32.2 mm
- Button mode
- Non-contact version: No.
- Feedback contact: Yes
- Printed: "Bell" symbol
- Type
Busch-Jaeger doorbell button one. DND/MUR 2029 UC-82
- Product type
Bell button
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547780 Busch-Jaeger 2CKA001751A3168 1 pc(s)

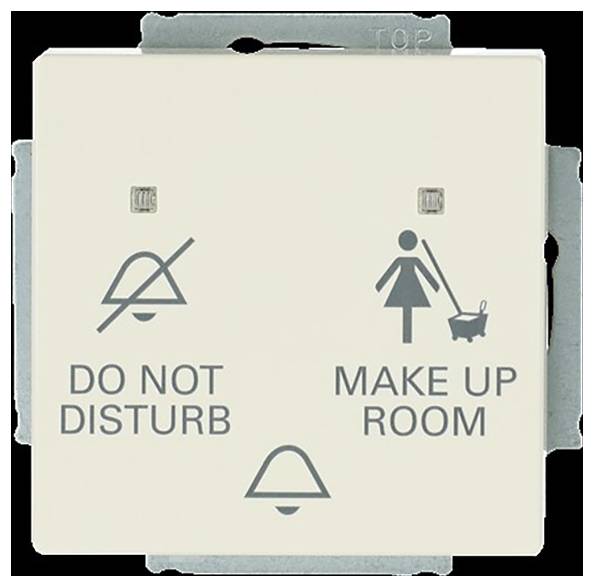

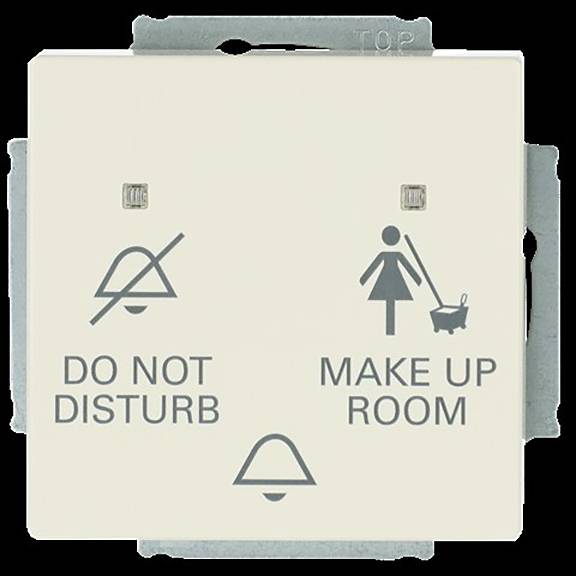

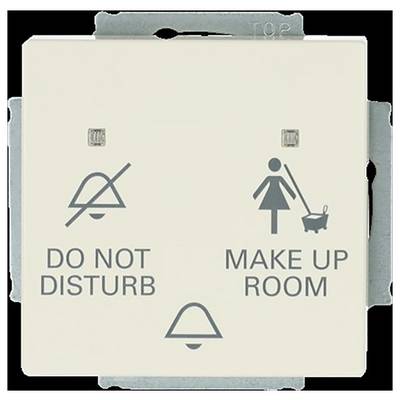

Description
For switching electrical consumers.
With "
DO NOT DISTURB"
/"
MAKE-UP ROOM"
.
230 V version with light diodes to display the status.
For use in non-residential areas.
Only mount in conjunction with standard UP equipment boxes to DIN 49073.
Design line: Platform 63, future® linear, solo®, karat®, Busch-dynasty®
Design line variant: Future®, future® linear
This text is machine translated.
With "
DO NOT DISTURB"
/"
MAKE-UP ROOM"
.
230 V version with light diodes to display the status.
For use in non-residential areas.
Only mount in conjunction with standard UP equipment boxes to DIN 49073.
Design line: Platform 63, future® linear, solo®, karat®, Busch-dynasty®
Design line variant: Future®, future® linear
This text is machine translated.
