Busch-Jaeger 2CKA002013A5518 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

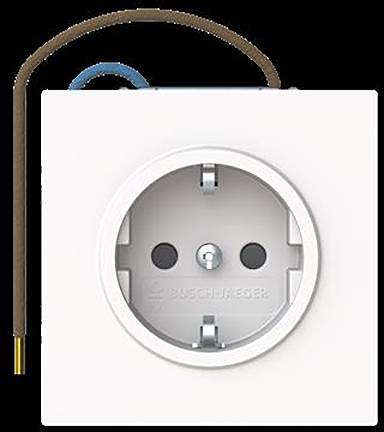

Busch-Jaeger Schuko socket safety+ 20 EUCBLI-44M
- Busch & Jaeger Switch Product Range
Technical specifications
- Design: Socket CEE 7/3 (type F)
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Painted
- Impact strength: IK03
- Design of surface: Matt
- Number of phases: 1
- Nominal voltage: 250 V
- Nominal current: 16 A
- Connection type: Plug-in terminal
- With hinged cover: No.
- Halogen-free: No.
- With signal lamp: No.
- Imprint/marking: Without
- Min Depth of the device socket 32 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- Mounting type: Claw / screw attachment
- Antibacterial treatment: No.
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Number of units: 1
- Text field/label area: No.
- With orientation light: No.
- Device width 71 mm
- Device height 71 mm
- Device depth 45.6 mm
- Lockable: No.
- Earthed: Earth clips
- Number of active contacts (round): 2
- With increased protection against accidental contact: No.
- Metallic color: No.
- Ejection mechanism: No.
- With function light: No.
- With micro-fuse: No.
- Special power supply: Without special power supply
- With loop-through function: No.
- With On / Off switch: No.
- Turned central insert: No.
- Type
Busch-Jaeger Schuko socket safety+ 20 EUCBLI-44M
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
yes
- Eco badge reference
Cradle to Cradle certified
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545245 Busch-Jaeger 2CKA002013A5518 1 pc(s)
Description
With increased contact protection to VDE 0620 standard.
With integrated step light.
Two LEDs generate a clearly visible light cone that is directed downwards from the central disk of the socket.
The orientation light can be switched via a separate connection possibility independent of the socket.
Design line: Busch-art linear®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material
This text is machine translated.
With integrated step light.
Two LEDs generate a clearly visible light cone that is directed downwards from the central disk of the socket.
The orientation light can be switched via a separate connection possibility independent of the socket.
Design line: Busch-art linear®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material
This text is machine translated.
