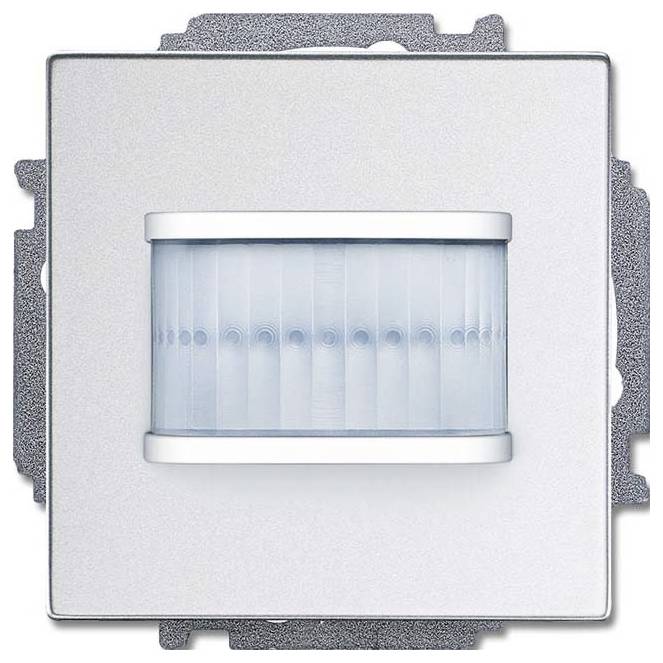

Busch-Jaeger 2CKA006200A0055 Flush mount Motion detector/actuator 180 ° Aluminium
EAN:
Part number:
Item no:
Technical specifications
- Height: 71 mm
- Width 71 mm
- Depth: 56 mm
- Mounting depth: 32 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Aluminium
- Surface protection: Painted
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bidirectional radio: Yes
- With bus connection: No.
- Min Depth of the device socket 32 mm
- Material quality: Thermoplastic
- RAL number (similar): 9006
- Response brightness adjustable: Yes
- Optimum mounting height 1.1 m.
- Max. Range to one side: 3 m.
- Max. Range: Front 6 m
- Angle of coverage vertical 19°
- Horizontal coverage angle 180°
- Staircase monitoring: Yes
- Min Switch-on time 30 seconds
- Max. duty cycle 30 min
- Animal slope: Yes
- Extension input: Yes
- Switch output 2300 W
- Product type
Motion detector/actuator
- Detection angle
180°
6 m
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Factory colour
Aluminium
- Similar RAL
9006
- Width
71 mm
- Height
71 mm
- Dim
(W x H) 71 mm x 71 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549933 Busch-Jaeger 2CKA006200A0055 Flush mount Motion detector/actuator 180 ° Aluminium
Description
Please use successor article. Combination of 62762-83-WL (2CKA006200A0169) and 64811 U (2CKA006800A3041).
Motion detector/switch actuator 1-fold, wireless for Busch-free@home®
With selection lens for capturing with animal cutters.
Communication with the free@home system takes place wirelessly.
For automatic switching of Busch-free@home® actuators as a function of motion and brightness.
Post-run time of the actuator can be programmed via the web interface of the system access point.
For switching 230 V~ consumers.
With integrated switch actuator
Switching function is also available without prior programming (pre-configured).
Configuration can be changed subsequently via the web interface (groups, scenes, ).
3-conductor connection technology (neutral conductor required).
With 230 V extension input (on/off).
With snap fastener
Programming via the Web interface of the System Access Point.
For more information on commissioning and operation, refer to the System Manual and the Online User's Guide.
: Platform 63, future® linear, Busch-aXcent®
: Busch-aXcent®, Busch-aXcent® pure
: Busch-free@home®
This text is machine translated.
