Busch-Jaeger 2CKA006200A0069 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

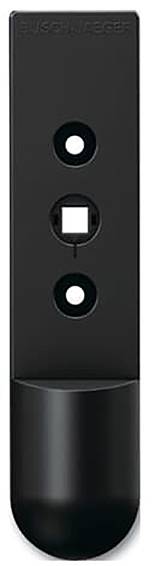

Busch-Jaeger window detector wireless, basaltsw 6222/1 AP-65-WL
- Busch & Jaeger Switch Product Range
Technical specifications
- Design: Other
- Mounting type: Other
- Colour, black
- Protection class (IP) IP20
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bidirectional radio: Yes
- With bus connection: No.
- RAL number (similar): 9005
- Type
Busch-Jaeger window detector wireless, basaltsw 6222/1 AP-65-WL
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546758 Busch-Jaeger 2CKA006200A0069 1 pc(s)
Description
Wireless window detector for Busch-free@home®.
For monitoring and transmitting the current window handle position (window open, closed, tilted).
The status can be visualized on the free@home panel and in the free@home APP.
The window sensor is mounted between the existing window handle and the window frame.
Existing window handle will continue to be used.
Suitable for window handle: 7 mm square, 43 mm fixing screw distance, cam-Ø 10 and 12 mm, max. Size of mounting plate of 34 x 77 mm (WxH).
No cables need to be laid.
Accessories for mounting (included in the scope of delivery):
-Square extension
Screws.
Adapter for cams
Battery included.
CR2 Battery type
Notification with a low battery status in the free@home APP.
Programming via the Web interface of the System Access Point.
Product line: Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
For monitoring and transmitting the current window handle position (window open, closed, tilted).
The status can be visualized on the free@home panel and in the free@home APP.
The window sensor is mounted between the existing window handle and the window frame.
Existing window handle will continue to be used.
Suitable for window handle: 7 mm square, 43 mm fixing screw distance, cam-Ø 10 and 12 mm, max. Size of mounting plate of 34 x 77 mm (WxH).
No cables need to be laid.
Accessories for mounting (included in the scope of delivery):
-Square extension
Screws.
Adapter for cams
Battery included.
CR2 Battery type
Notification with a low battery status in the free@home APP.
Programming via the Web interface of the System Access Point.
Product line: Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
