Busch-Jaeger 2CKA006200A0070 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger universal detector wireless,basaltsw 6222/2 AP-65-WL
- Busch & Jaeger Switch Product Range
Technical specifications
- Design: Other
- Mounting type: Other
- Colour, black
- Protection class (IP): Other
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bidirectional radio: Yes
- With bus connection: No.
- RAL number (similar): 9005
- Number of digital inputs: 1
- Type
Busch-Jaeger universal detector wireless,basaltsw 6222/2 AP-65-WL
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543628 Busch-Jaeger 2CKA006200A0070 1 pc(s)
Description
Wireless universal detector for Busch-free@home®.
For monitoring and transmitting the condition (open, closed) of roof windows, skylights, doors and gates.
Additional connectivity for an external, potential-free sensor (either NC or NO contact).
The status can be visualized on the free@home panel and in the free@home APP.
Separate evaluation and monitoring of the channels.
The universal detector and magnets are attached with adhesive film or screws.

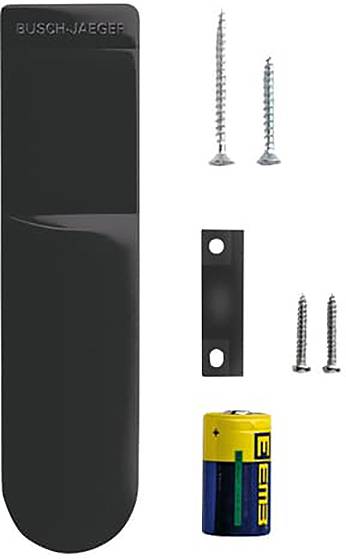

Accessories (supplied as standard):
Adhesive film
Screws.
Magnet
CR2 Battery type
Notification with a low battery status in the free@home APP.
Max. Cable length of external sensor 5 m.
Connection cross-section of external sensor: 0.14...0.5 mm² (single-wired)
Programming via the Web interface of the System Access Point.
Product line: Busch-free@home® Wireless, Busch-free@home®
