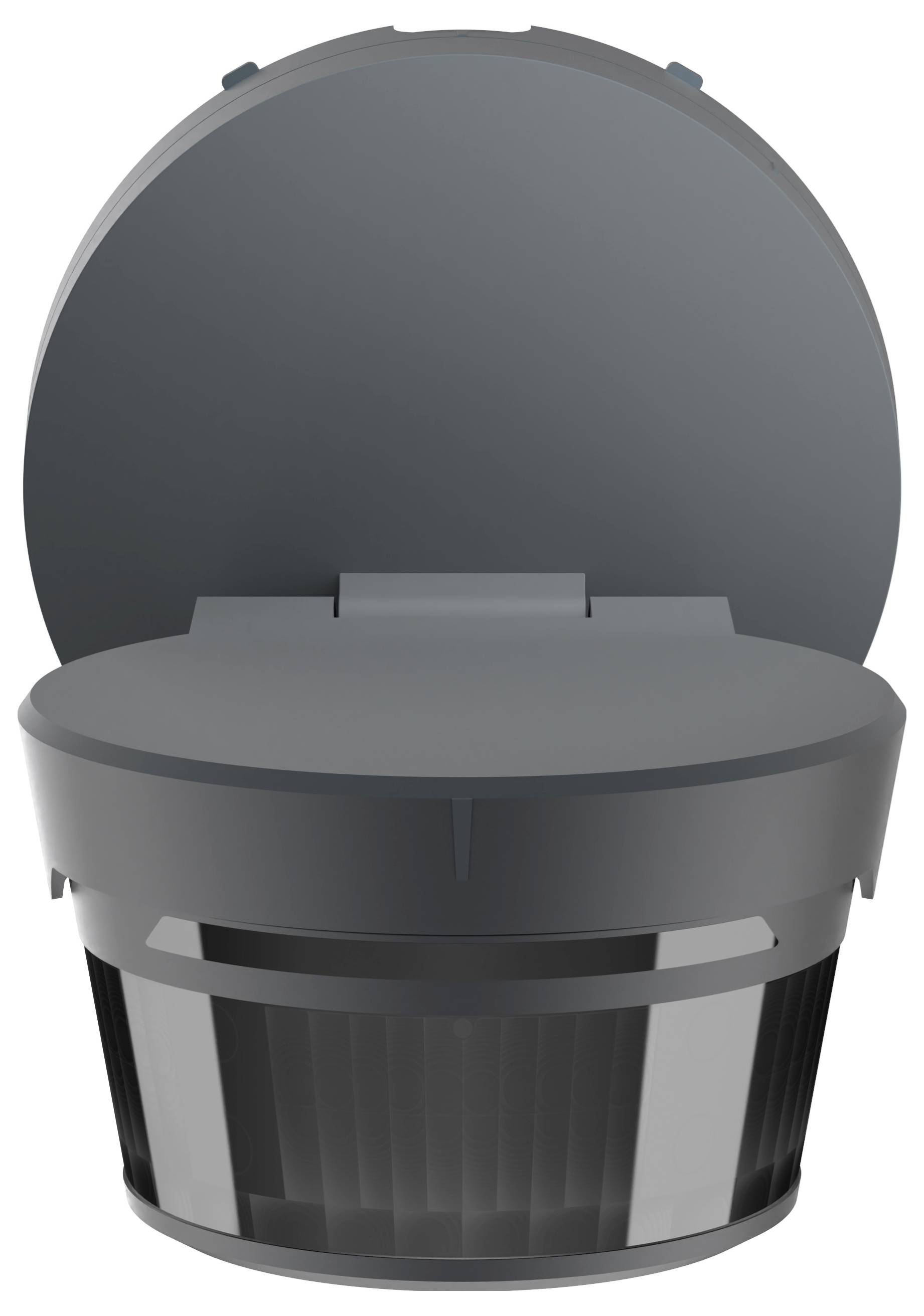

Busch-Jaeger 2CKA006200A0863 Surface-mount Motion detector 280 ° Relay Multicolour
EAN:
Part number:
Item no:
Technical specifications
- Height: 124.4 mm
- Width 110 mm
- Depth: 157.75 mm
- Design: Motion detector
- Mounting type: Surface-mounted
- Colour: Anthracite
- Protection class (IP) IP55
- Surface protection: Untreated
- Nominal voltage: 230 V
- Halogen-free: No.
- Voltage type AC
- Mains frequency: 50/60 Hz.
- Max. switching capacity 2300 W
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: Yes
- Suitable for ceiling mounting: Yes
- Material quality: Thermoplastic
- Antibacterial treatment: No.
- RAL number (similar): 7016
- Response brightness adjustable: Yes
- Optimum mounting height 2.5 m.
- Max. Range to one side: 16 m.
- Max. Range: Front 16 m
- Horizontal coverage angle: 8..280°
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 30 min
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Suitable for wireless transmission: Yes
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Animal slope: No.
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced activation: Yes
- Forced shutdown: Yes
- By-pass switch: Yes
- Remote control: Yes
- Temperature: -25..55°C
- Panning range of sensor, horizontal: -30..30°
- Panning range sensor, vertical: -40..90°
- Number of switching zones: 4
- Product type
Motion detector
- Detection angle
280°
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Factory colour
Multicolour
- Similar RAL
7016
- Width
150 mm
- Height
100 mm
- Dim
(W x H x D) 150 x 100 x 150 mm
- Weight
1000 g
- Depth
150 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547911 Busch-Jaeger 2CKA006200A0863 Surface-mount Motion detector 280 ° Relay Multicolour
Description
Electronic motion detector for detecting thermal movements.
Setting of the basic functions optionally via Poti or Busch-free@home® Next APP
Outputs: 1 NO, potential-bound.
Can be combined with other Busch-Flextronics® wireless components.
Can be used as a wireless subscriber in Busch-free@home®.
Recording and operating mode display
Ground and back field monitoring
Flexible mounting through three articulated joints
Level compensation: +/- 30°
Profile lens for best coverage
Monitoring density: 110 sectors with 440 switching segments
Brightness-independent test mode for evaluating the detection area
Integrated dismantling difficulty
Additional switch-on option via Busch-Flextronics® wireless sensors or Busch-free@home® wireless sensors as extension
Integrated twilight sensor - switching threshold adjustable
Optional "
Angular design"
Via Busch-Wächter® frame 6851/DR-xxx (not included)
Automatic interference suppression
Automatic blinding protection
Automatic stabilization of range summer/winter mode
When used in conjunction with a relay/contactor, an RC quenching element no. 6899.
Installation:
One-point assembly is possible
Suitable for wall and ceiling mounting
For corner mounting in conjunction with corner adapter (6851/EA-xxx) (not included)
Multi cable entry at the back and side wall with sealing collars
Mounting on ISO switch box (68 mm) is possible
Connection terminals with lever for fine or multi-wired conductors
Setting the basic functions optionally via Poti or Busch-free@home® Next APP:
Potentiometer:
- Switch-off delay: 10 s to 30 min, short-term pulse
- Switching threshold twilight, test mode
Busch-free@home® Next APP/Busch-free@home®:
- Switch-off delay: 10 s to 30 min, short-term pulse
- Twilight switching threshold
- Test mode, duration ON, duration OFF
- Comfort function (duration on at dusk, guard mode from time)
- Timer (timer for connected lighting)
- Detection field left/front/right in 3 levels
- Field detection
- Detection sensitivity
- Operating mode (normal, staircase, continuous operation)
Measuring values/sensors for use in actions/alarms as switching thresholds:
Twilight threshold 0.5 to 1,000 Lux
Brightness limit 1,000 to 100,000 Lux
Design line: PRO
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
