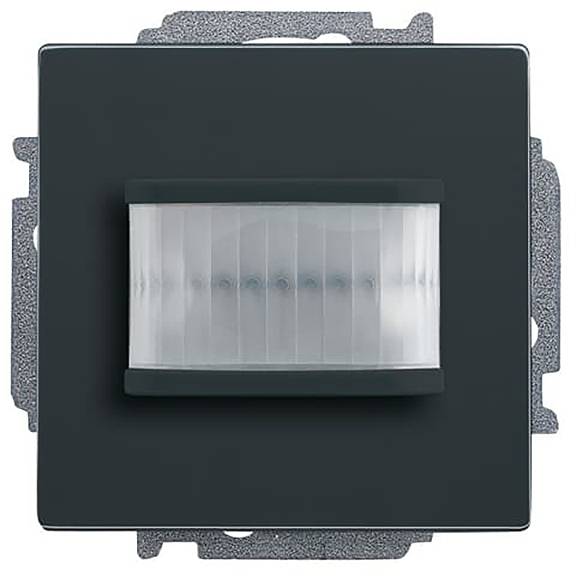

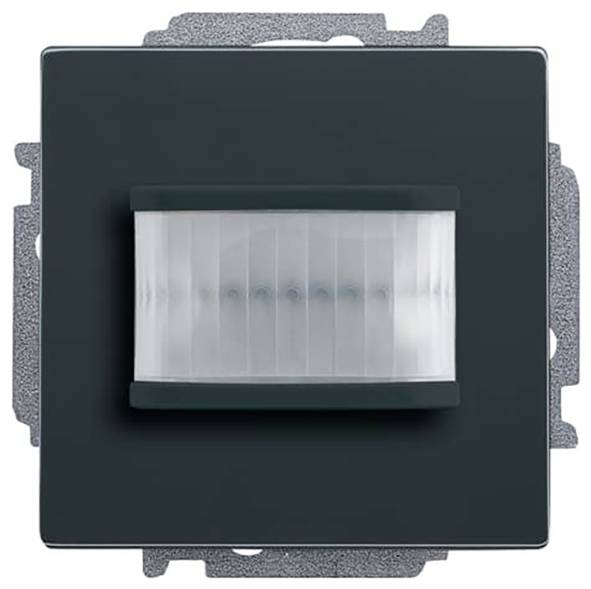

Busch-Jaeger 2CKA006220A0110 Flush mount Motion detector/actuator 180 °
EAN:
Part number:
Item no:
Technical specifications
- Height: 71 mm
- Width 71 mm
- Depth: 56 mm
- Mounting depth: 32 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Anthracite
- Surface protection: Untreated
- Transparent: No.
- Surface design: Glossy
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: No.
- Min Depth of the device socket 32 mm
- Material quality: Thermoplastic
- RAL number (similar): 7021
- Response brightness adjustable: Yes
- Optimum mounting height 1.1 m.
- Max. Range to one side: 3 m.
- Max. Range: Front 6 m
- Angle of coverage vertical 19°
- Horizontal coverage angle 180°
- Staircase monitoring: Yes
- Min Switch-on time 30 seconds
- Max. duty cycle 30 min
- Low-level detection/back field monitoring: No.
- Teach-Function for Response Brightness: No.
- Animal slope: Yes
- Extension input: No.
- Switch-off delay, self-learning: No.
- Switch output 2300 W
- Product type
Motion detector/actuator
- Detection angle
180°
6 m
- Mounting type
Flush mount
- Switching capacity
2300 W
- Similar RAL
7021
- Width
71 mm
- Height
71 mm
- Dim
(W x H) 71 mm x 71 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551887 Busch-Jaeger 2CKA006220A0110 Flush mount Motion detector/actuator 180 °
Description
Motion detector/switch actuator 1-fold for Busch-free@home®.
With selection lens for capturing with animal cutters.
For automatic switching of Busch-free@home® actuators as a function of motion and brightness.
Post-run time of the actuator can be programmed via the web interface of the system access point.
For switching 127 V~/230 V~ consumers.
With integrated switch actuator
Switching function is also available without prior programming (pre-configured).
Configuration can be changed subsequently via the web interface (groups, scenes, ).
The bus connection takes place via the supplied bus terminal.
When installing in the flush-mounted socket, ensure a spatial separation between the bus and the 127 V/230 V installation cable. If the minimum distance is exceeded, use e.g. electronic cans or insulation hoses.
Programming only when the bus voltage is applied via the System Access Point Web interface.
Design line: Platform 63, future® linear, Busch-aXcent®, karat®, Busch-dynasty®
Design line variant: Busch-aXcent®, Busch-aXcent® pure
Product line: Busch-free@home®
This text is machine translated.
