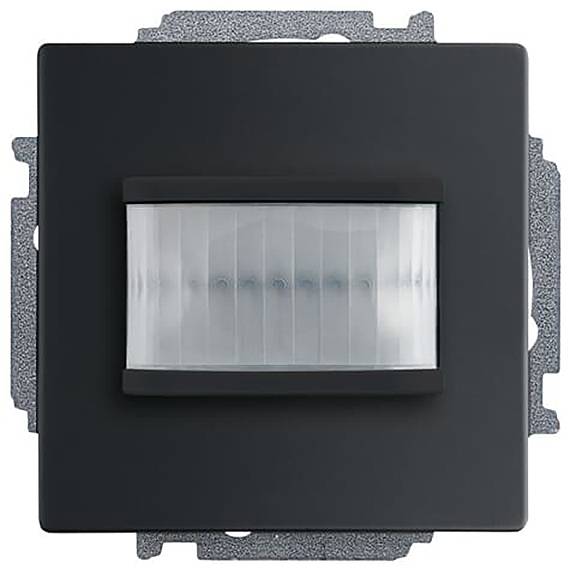

Busch-Jaeger 2CKA006220A0512 Flush mount Motion detector 180 °
EAN:
Part number:
Item no:
Technical specifications
- Height: 71 mm
- Width 71 mm
- Depth: 30 mm
- Installation depth: 8.5 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour, black
- Surface protection: Painted
- Transparent: No.
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bidirectional radio: Yes
- With bus connection: No.
- Min Depth of the device socket 8.5 mm
- Material quality: Thermoplastic
- RAL number (similar): 9005
- Response brightness adjustable: Yes
- Optimum mounting height 1.1 m.
- Max. Range to one side: 3 m.
- Max. Range: Front 6 m
- Angle of coverage vertical 19°
- Horizontal coverage angle 180°
- Staircase monitoring: Yes
- Low-level detection/back field monitoring: No.
- Teach-Function for Response Brightness: No.
- Animal slope: Yes
- Extension input: No.
- Switch-off delay, self-learning: No.
- Product type
Motion detector
- Detection angle
180°
6 m
- Mounting type
Flush mount
- Similar RAL
9005
- Width
71 mm
- Height
71 mm
- Dim
(W x H) 71 mm x 71 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549409 Busch-Jaeger 2CKA006220A0512 Flush mount Motion detector 180 °
Description
Motion detector for Busch-free@home®.
With selection lens for capturing with animal cutters.
For automatic switching of Busch-free@home® actuators as a function of motion and brightness.
Post-run time of the actuator can be programmed via the web interface of the system access point.
The bus connection takes place via the supplied bus terminal.
Programming only when the bus voltage is applied via the System Access Point Web interface.
Design line: Platform 63, future® linear, Busch-aXcent®, karat®
Design line variant: Future® linear - matt, Busch-aXcent®, Busch-aXcent® pure
Product line: Busch-free@home®
