Busch-Jaeger 2CKA006220A0895 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

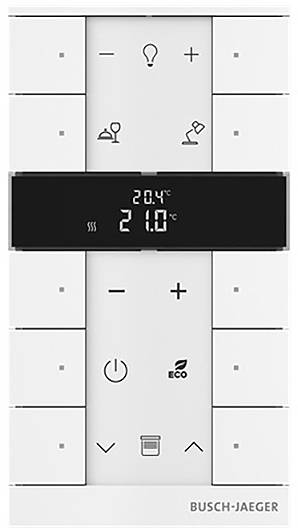

Busch-Jaeger Room temperature regulator 10-way, white mat SBR-F-10.0.11-884
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- Surface protection: Painted
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: No.
- Min Depth of the device socket 30.7 mm
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Assembly: Operating element
- Temperature controller class: I.
- Type
Busch-Jaeger Room temperature regulator 10-way, white mat SBR-F-10.0.11-884
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547437 Busch-Jaeger 2CKA006220A0895 1 pc(s)
Description
Busch-TenTon®, room temperature controller with operating function 10-fold
Freely configurable multifunctional control element.
With integrated free@home bus connection.
With integrated room temperature controller and temperature sensor.
Button function: Switch / dim / blind / send value / light scenes etc.
For controlling HVAC actuators.
Main-/branch line operation
The fan stage can be switched manually or into automatic mode
Power supply via bus terminals (a,b).
Button contacts left / right
Display of the operating mode, temperature, FanCoil level,
Design line: Busch-TenTon®
Product line: Busch-free@home®
