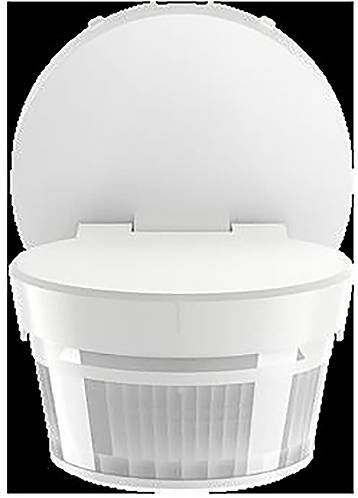

Busch-Jaeger 2CKA006220A0917 Surface-mount Motion detector Multicolour Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Height: 124.4 mm
- Width 110 mm
- Depth: 157.75 mm
- Design: Motion detector
- Mounting type: Surface-mounted
- Material: Plastic
- Colour: white
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Number of channels: 4
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With bus connection: No.
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Optimum mounting height 2.5 m.
- Max. Range to one side: 16 m.
- Max. Range: Front 16 m
- Min Switch-on time 10 seconds
- Product type
Motion detector
16 m
- Mounting type
Surface-mount
- Factory colour
Multicolour
- Similar RAL
9016
- Width
203.0000 mm
- Height
116.0000 mm
- Dim
(W x H x D) 203.0000 x 116.0000 x 79.0000 mm
- Weight
0.4250
- features
Non-stop lighting mode
- Depth
79.0000 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552446 Busch-Jaeger 2CKA006220A0917 Surface-mount Motion detector Multicolour Non-stop lighting mode
Description
Electronic motion detector for detecting thermal motion and triggering an external actuator (not included)
Can be used as a twisted pair subscriber in Busch-free@home®.
With integrated f@h bus coupler
Additional auxiliary voltage is not required
Setting of the basic functions optionally via Poti or Busch-free@home® Next APP
Recording and operating mode display
Ground and back field monitoring
Flexible mounting through three articulated joints
Level compensation: +/- 30°
Profile lens for best coverage
Monitoring density: 110 sectors with 440 switching segments
Brightness-independent test mode for evaluating the detection area
Integrated dismantling difficulty
Additional activation possibility via Busch-free@home® sensors as extension
Integrated twilight sensor - switching threshold adjustable
Optional "
Angular design"
Via Busch-Wächter® frame 6851/DR-xxx (not included)
Automatic interference suppression
Automatic blinding protection
Automatic stabilization of range summer/winter mode
Installation:
One-point assembly is possible.
Suitable for wall and ceiling mounting.
For corner mounting in conjunction with corner adapter (6851/EA-xxx) (not included).
Multi cable entry at the back and side wall with sealing collars
Mounting on ISO switch box (68mm) possible
Setting the basic functions optionally via Poti or Busch-free@home® Next APP:
Potentiometer:
- Switch-off delay: 10 s to 30 min, short-term pulse
- Switching threshold twilight, test mode
Busch-free@home® Next APP/Busch-free@home®:
- Switch-off delay: 10 s to 30 min, short-term pulse
- Switching threshold twilight,
- Test mode
- Duration ON
- Duration
- Comfort function (duration on at dusk, guard mode from time)
- Detection field left/front/right in 3 levels
- Field detection
- Detection sensitivity
- Operating mode (normal, staircase, continuous operation)
Measured values/sensor for use in actions/alarms as switching threshold:
Twilight threshold 0.5 to 1,000 Lux
Brightness limit 1,000 to 100,000 Lux
Temperature range of sensor: -25°C to 55°C.
Connection: Twisted-pair clamp
Design line: PRO
Product line: Busch-free@home®
This text is machine translated.
