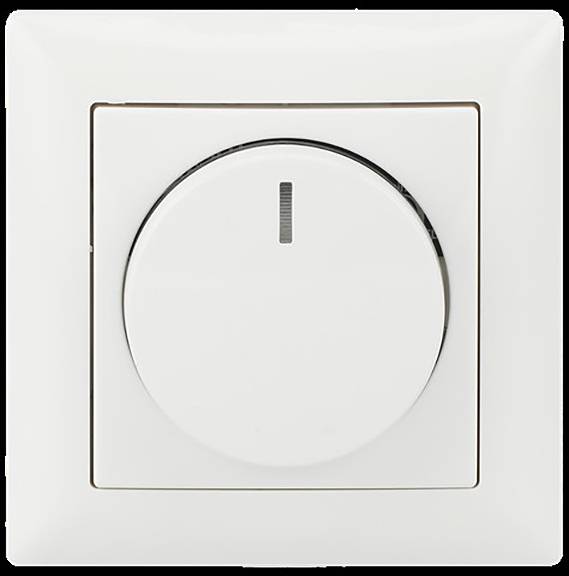

Image similar
1/2

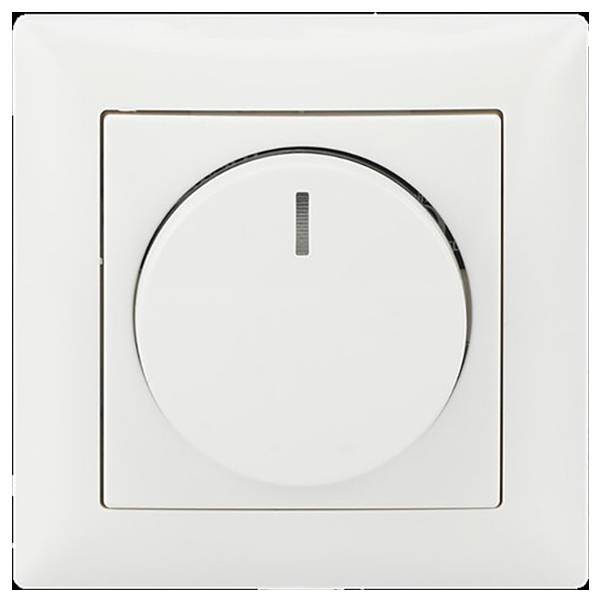

Image similar
Busch-Jaeger 2CKA006512A0349 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger rotating dimmer UP alpine white 6523 UJ-914-102
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Impact strength: IK00
- Surface design: Glossy
- Nominal voltage: 230 V
- Type of connection: Screw terminal
- Halogen-free: No.
- Mains frequency: 50/60 Hz.
- Max. Switching capacity LED 250 W
- Min Depth of the device socket 32 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Dimming of phase section: Yes
- Dimming of leading edge: Yes
- Material quality: Thermoplastic
- Mounting type: Claw / screw attachment
- RAL number (similar): 9010
- Suitable for protection class (IP): IP20
- Extension input: Yes
- Assembly: Base element with full cover plate
- Device width 81 mm
- Device height 81 mm
- Device depth 52 mm
- Lastart: Universal and LED retrofit
- Rotary/pushbutton operation
- Wire cross-section 0.75..4 mm²
- Can be used with button: No.
- Can be used with a motion detector: No.
- Can be used with presence detector: No.
- Can be used with timer/timer: No.
- Can be used with IR key: No.
- Light value storage: Yes
- Can be used with radio button: No.
- APP control via Bluetooth: No.
- Series dimmer: No.
- Control voltage 230 V
- Nominal power resistive load 2..250 W
- Type
Busch-Jaeger rotating dimmer UP alpine white 6523 UJ-914-102
- Product type
Switch product range
- Dim
(L x W x H) 400 cm x 300 mm x 200 mm
- Content
1 pc(s)
- Height
200 mm
- Length
400 cm
- Width
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544728 Busch-Jaeger 2CKA006512A0349 1 pc(s)
Description
Consists of Busch LED rotary dimmer 6523 U-102.
Consists of central panel with knob, 2115-914.
Consists of Busch-balance SI cover frame, 1-fold 1721-914.
For dimmable retrofit LED lamp (Ledi).
Ready to install LED-UP rotary dimmer (set packaging).
Design line: Busch-balance® SI
This text is machine translated.
Consists of central panel with knob, 2115-914.
Consists of Busch-balance SI cover frame, 1-fold 1721-914.
For dimmable retrofit LED lamp (Ledi).
Ready to install LED-UP rotary dimmer (set packaging).
Design line: Busch-balance® SI
This text is machine translated.
