Busch-Jaeger 2CKA006710A0025 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

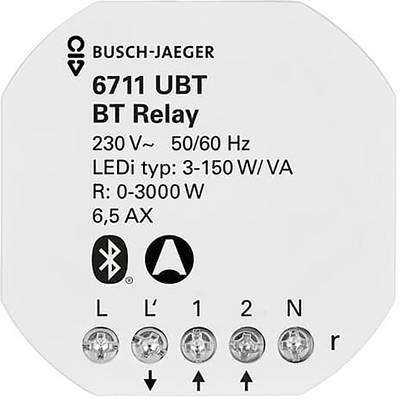

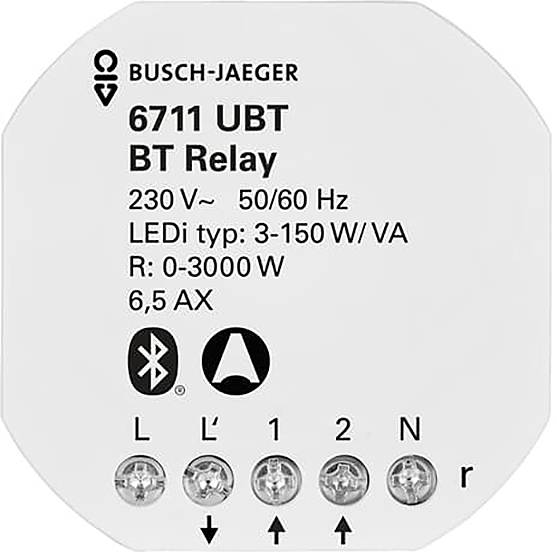

Busch-Jaeger relay UP 1f 6711 UBT
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- Mounting method: Clamp mounting
- RAL number (similar): 9010
- Suitable for protection class (IP): IP20
- Suitable for switch: No.
- Suitable for dimmer: No.
- Suitable for shutter switch no.
- Suitable for pulse pressure: Yes
- Suitable for shutter switch no.
- Suitable for blinds/shutter switch: No.
- In the housing: No.
- In the tube base housing: No.
- As module/board: Yes
- Power supply 230 V AC
- Scan mode: Yes
- Switching operation: No.
- With radio transmitter: No.
- With radio code: No.
- With radio switch: No.
- Rolling code system: No.
- Number of relays: 1
- Type
Busch-Jaeger relay UP 1f 6711 UBT
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543633 Busch-Jaeger 2CKA006710A0025 1 pc(s)
Description
Intelligent flush-mounted relay, 1-way for Bluetooth Low Energy (BLE) applications (e.g. in Casambi ecosystem),
For mounting in switch and switch junction boxes.
Activation of the insert via a BLE switch/Smart switch, e.g. 6716 UBT.
Operation via conventional keys (2020 US, 2012/6UK) possible.
Additional button input for controlling another BLE/Casambi subscriber.
Bluetooth mesh technology ensures maximum functional security.
Depending upon the Eco-system the radio range extends automatically via the network-supplied BT-Mesh devices (Repeater-Function).
Breaking capacity:
Ledi 3 VA
0-3000W
This text is machine translated.
For mounting in switch and switch junction boxes.
Activation of the insert via a BLE switch/Smart switch, e.g. 6716 UBT.
Operation via conventional keys (2020 US, 2012/6UK) possible.
Additional button input for controlling another BLE/Casambi subscriber.
Bluetooth mesh technology ensures maximum functional security.
Depending upon the Eco-system the radio range extends automatically via the network-supplied BT-Mesh devices (Repeater-Function).
Breaking capacity:
Ledi 3 VA
0-3000W
This text is machine translated.
