Busch-Jaeger 2CKA006710A0030 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger switch insert 6716/01 UBT
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Surface-mounted
- Material: Other
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Halogen-free: Yes
- Number of channels: 4
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- With hand-held transmitter: No.
- Wall transmitter: Yes
- Window transmitter: No.
- With remote control: No.
- Signal transmission: Other
- Range: 10 m
- Suitable for switches: Yes
- Suitable for dimmer: Yes
- Suitable for blind switches: Yes
- Suitable for display element: No.
- Suitable for motion detector: No.
- Type
Busch-Jaeger switch insert 6716/01 UBT
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545197 Busch-Jaeger 2CKA006710A0030 1 pc(s)
Description
Bluetooth Low Energy (BLE) Smart switch Use for Busch-balance® SI and Busch-art linear®
Wall transmitter, 2 / 4 channel.
For Busch-balance® SI and Busch-art linear®
For smart rocker switches 6735 BT-xxx and 6736 FOH-xxx.
Smart switch for wireless remote control of radio components.
For controlling the BT pills 6711UBT, 6715 UBT.
Compatible with the Bluetooth eco-systems of the following companies: Aruba, Casambi, lighted, Fulham, Helvar, Hytronics, Lumobi, Qeeedji, SILAIR, Blu2Light (Vossloh Schwabe), WISILICIA, XICATO controls.
For storing, retrieving and dimming of individual lighting scenes.
Batteryless switch, no connection to mains voltage (230 V~) is necessary.
Particularly environmentally friendly, sustainable and maintenance-free Transmission energy is generated during switching (Energy Harvesting).
Highest functional security through Bluetooth-Mesh technology.
Depending on the ecosystem, the radio range is automatically extended via mains-operated BT mesh devices (repeater function).
Encrypted transmission with AES-128 (CBC mode) and sequence counter.
Includes NFC Forum Type 2 Tag configuration interface (ISO/IEC 14443 Part 2 + 3).
This makes it particularly easy to start up the BLE radio components from Casambi.

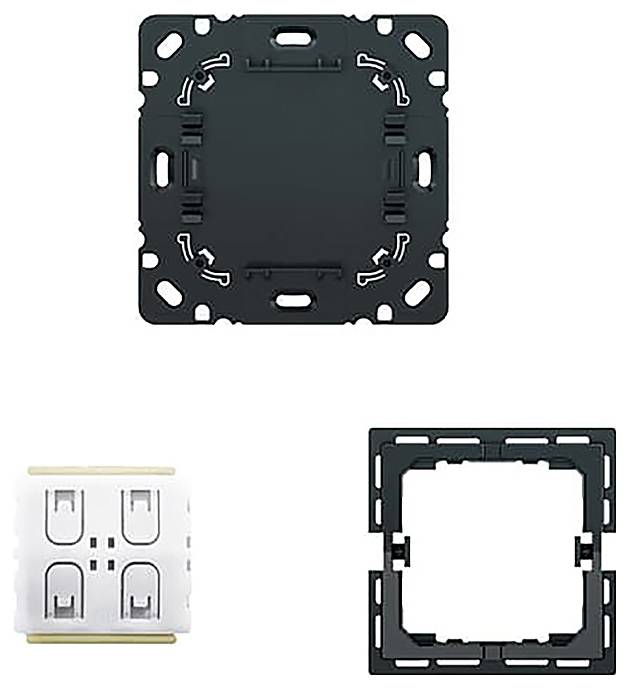

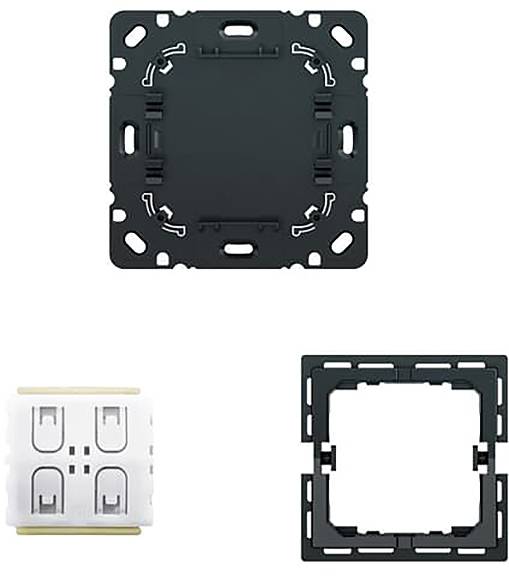

Can be mounted freely in the room with the adhesive tape included in the delivery and the mounting plate.
Includes mounting plate for mounting on smooth walls or on switch boxes.
Design line: Busch-balance® SI, Busch-art linear®
Design line Variant: Busch-art linear®, Busch-art linear® - real material, Busch-art linear® - with decorative ring
