Busch-Jaeger 2CKA006710A0046 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger Smart switch, wireless 62721 U-WL
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Surface-mounted
- Colour: Beige
- Protection class (IP) IP20
- Surface protection: Untreated
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED indicator: No.
- With bus connection: No.
- Min Depth of the device socket 0 mm
- With labeling field: No.
- Number of operating points: 4
- Type
Busch-Jaeger Smart switch, wireless 62721 U-WL
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545192 Busch-Jaeger 2CKA006710A0046 1 pc(s)
Description
Smart light/shutter switch for wireless remote control of Busch-Flextronics® wireless or Busch-free@home® wireless systems.
Wall transmitter, 2/4 channels.

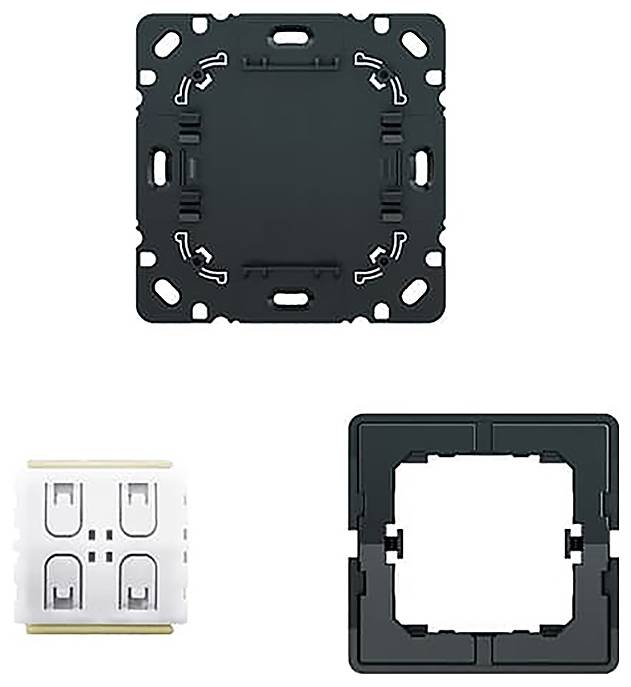

Consists of Smart-switch wireless application 62721 U-WL, mounting plate and spacer ring for Busch-future linear®.
When using heavy cover frames, secure the device with screws.
Can be used in Busch-Flextronics® wireless room control with up to 32 devices.
Can be integrated into Busch-free@home® wireless via System Access Point with up to 150 devices.
At least one Busch-Flextronics® flush mount Flex with wireless control element, a wireless flush mount actuator or a Busch-free@home® wireless sensor/sensor/actuator wireless is required for integration into the system.
Programming with the Busch-free@home Next APP or via the web-interface of the system access point.
Batteryless switch, no connection to mains voltage (230 V~) is necessary.
Particularly environmentally friendly, sustainable and maintenance-free.
Transmission energy is generated when switching (Energy Harvesting).
Highest functional security through 2.4 GHz-Mesh technology.
Includes mounting plate for mounting on smooth walls or on switch boxes.
Can be mounted freely in the room with the adhesive tape included in the delivery and the mounting plate.
Design line: Platform 63, future® linear, Busch-aXcent®, karat®, pure stainless steel, Busch-dynasty®, solo®
Design line variant: Busch-aXcent®, Busch-aXcent® pure, future® linear, future®
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
Wall transmitter, 2/4 channels.
Consists of Smart-switch wireless application 62721 U-WL, mounting plate and spacer ring for Busch-future linear®.
When using heavy cover frames, secure the device with screws.
Can be used in Busch-Flextronics® wireless room control with up to 32 devices.
Can be integrated into Busch-free@home® wireless via System Access Point with up to 150 devices.
At least one Busch-Flextronics® flush mount Flex with wireless control element, a wireless flush mount actuator or a Busch-free@home® wireless sensor/sensor/actuator wireless is required for integration into the system.
Programming with the Busch-free@home Next APP or via the web-interface of the system access point.
Batteryless switch, no connection to mains voltage (230 V~) is necessary.
Particularly environmentally friendly, sustainable and maintenance-free.
Transmission energy is generated when switching (Energy Harvesting).
Highest functional security through 2.4 GHz-Mesh technology.
Includes mounting plate for mounting on smooth walls or on switch boxes.
Can be mounted freely in the room with the adhesive tape included in the delivery and the mounting plate.
Design line: Platform 63, future® linear, Busch-aXcent®, karat®, pure stainless steel, Busch-dynasty®, solo®
Design line variant: Busch-aXcent®, Busch-aXcent® pure, future® linear, future®
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
