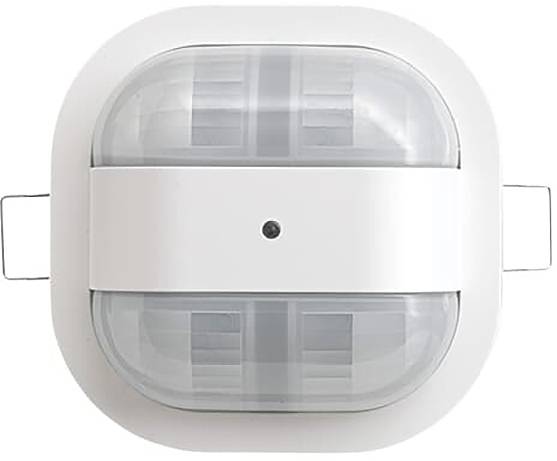

Busch-Jaeger 2CKA006800A2744 Recess-mount Occupancy sensor Relay Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Height: 94 mm
- Width 94 mm
- Depth: 76 mm
- Installation depth: 49 mm
- Design: Presence detectors
- Mounting type: Other
- Material: Plastic
- Colour: white
- Protection class (IP) IP40
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Connection type: Plug-in terminal
- Halogen-free: Yes
- Voltage type AC
- Mains frequency: 50/60 Hz.
- Max. Switching capacity LED 200 W
- Max. switching capacity 2300 W
- Suitable for C-Load: Yes
- Min Depth of the device socket 49 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 68 mm
- Material quality: Thermoplastic
- Antibacterial treatment: No.
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 2 m.
- Max. Range to one side: 1.5 m.
- Max. Range: Front 15 m
- Horizontal coverage angle: 90..360°
- Staircase monitoring: Yes
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: No.
- Dimming function with dimming element: No.
- Animal slope: No.
- Extension input: Yes
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced activation: Yes
- Forced shutdown: Yes
- Scan angle 360°
- Bridge switch: No.
- Max. Presence area: 90 m²
- Remote control: Yes
- With signal unit: No.
- Switch-off delay 0 s.
- Response brightness 5 - .2000 Lux
- Temperature: -5..45°C
- Max. Power surge 800 A
- Min Power surge 0.01 A
- Alarm function: No.
- Switch-on delay 0 s.
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Number of switching zones: 368
- Product type
Occupancy sensor
- Mounting type
Recess-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
200 W
- Similar RAL
9016
- Width
94 mm
- Height
94 mm
- (Ø)
68 mm
- Dim
(Ø x H) 68 mm x 94 mm
- features
Non-stop lighting mode
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549450 Busch-Jaeger 2CKA006800A2744 Recess-mount Occupancy sensor Relay Non-stop lighting mode
Description
Presence detectors with a mixed-light measurement.
For brightness and movement-dependent switching of lights.
With Bluetooth interface for configuration and operation.
Adjustment of all settings via smartphone or tablet
Light control via smartphone or tablet APP.
With high-load relay for LED-operation
Coverage area (at 3 m mounting height): Rectangular persons: Transverse to the detector 30 m x 3 m, front 20 m x 3 m.
Extension of the detection area by extension combination.
Building height 27 mm
For semi-automatic, comfort and fully automatic operation.
Additional possibility of switching on/off via button input.
With continuous light/continuous off function (8 hours), can be activated via intelligent extension input.
With selectable presence simulation in case of no-presence.
With integrated storage of the switch-on duration (Energy Monitor).
With brightness-independent test mode for evaluating the detection area.
With detection display in test mode. Ceiling mounting with integrated spring clip.
Anti-twist protection through additional quick tension.
Settings elements accessible on the front.
Monitoring density: 92 sectors with 368 switching segments
Individual disconnection and sensitivity adjustment of individual sensors possible.
Switch-off delay: Approx. 1 min. - 30 minutes Or short-time pulse adjustable.
With selectable dynamic switch-off delay.
Suitable for suspended ceilings with panel thickness of 9 to 25 mm.
Installation hole size: Ø 68 mm.
When used in conjunction with a relay/contactor, an RC quenching element no. 6899.
Free APP for IOS and Android available in the APP store or play store.
Recommendation: HaloX® 100 by Kaiser (article no. 1281-00) with appropriate cover (1281-01 or 1281-61 for exposed concrete) or IBtronic H120-68 from Spelsberg
Design line:ProfessionalLINE
This text is machine translated.
