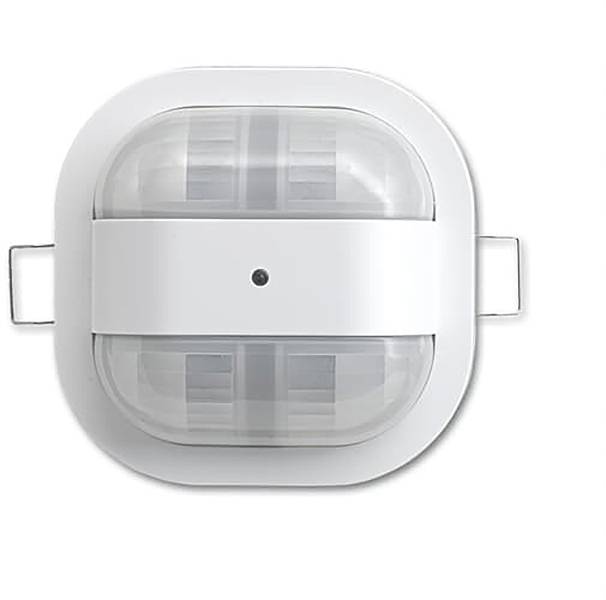

Busch-Jaeger 2CKA006800A2748 Recess-mount Occupancy sensor 360 ° Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Height: 94 mm
- Width 94 mm
- Depth: 87 mm
- Installation depth: 60 mm
- Design: Presence detectors
- Mounting type: Other
- Material: Plastic
- Colour: white
- Protection class (IP) IP40
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Connection type: Plug-in terminal
- Halogen-free: Yes
- Voltage type AC
- Mains frequency: 50/60 Hz.
- Max. Switching capacity LED 200 W
- Max. circuit breaking capacity 1380 W
- Suitable for C-Load: Yes
- Min Depth of the device socket 60 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 68 mm
- Material quality: Thermoplastic
- Antibacterial treatment: No.
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 2 m.
- Max. Range to one side: 1.5 m.
- Max. Range: Front 15 m
- Horizontal coverage angle: 90..360°
- Staircase monitoring: Yes
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Constant light control: Yes
- HVAC activation: Yes
- Network compatible: Yes
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: No.
- Dimming function with dimming insert: Yes
- Animal slope: No.
- Extension input: Yes
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: Yes
- Forced activation: Yes
- Forced shutdown: Yes
- Scan angle 360°
- Bridge switch: No.
- Max. Presence area: 90 m²
- Remote control: Yes
- With signal unit: No.
- Switch-off delay 0 s.
- Response brightness 5 - .2000 Lux
- Temperature: -5..45°C
- Max. Power surge 800 A
- Min Power surge 0.01 A
- Alarm function: No.
- Switch-on delay 0 s.
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Number of switching zones: 368
- Product type
Occupancy sensor
- Detection angle
360°
15 m
- Mounting type
Recess-mount
- Operating voltage
230 V AC
- Switching capacity
1380 W
- Switching capacity (LED)
200 W
- Similar RAL
9016
- Length
87 mm
- Width
94 mm
- Height
94 mm
- (Ø)
68 mm
- Dim
(Ø x H) 68 mm x 94 mm
- features
Non-stop lighting mode
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550463 Busch-Jaeger 2CKA006800A2748 Recess-mount Occupancy sensor 360 ° Non-stop lighting mode
Description
Presence detectors with a mixed-light measurement.
For brightness and motion-dependent control and switching of DALI operating devices.
For DALI broadcast mode (central telegram).
Provides the necessary current for other DALI operating and control devices.
Suitable for up to 45 DALI control devices.
To change the color temperature of >tunable white< lights/light bulbs that comply with DALI standard IEC 62386-209 (Device Type 8).
Colour temperature then adjustable between 2,700 K - 6,500 K.
With additional switching output for HVAC-control or for switching further consumers (e.g. table lights).
Configurable for complete shutdown of DALI operating devices.
With Bluetooth interface for configuration and operation.
Adjustment of all settings via smartphone or tablet
Light control via smartphone or tablet APP.
Coverage area (at 3 m mounting height): Rectangular Persons: Transverse to the detector 30 m x 3 m, front 20 m x 3 m. Expansion of the detection area by means of Master-/slave combination. Building height 27 mm For semi-automatic, comfort and fully automatic operation. Additional possibility of switching on/off via button input.
With continuous light/continuous off function (8 hours), can be activated via intelligent extension input.
With time-controlled basic lighting function.
With selectable burning function for fluorescent lamps.
With 2-level automatic shut-off (according to EnEV / EN 15232).
With time-controlled night glare protection function.
With selectable presence simulation in case of no-presence.
With integrated storage of the switch-on duration (Energy Monitor).
With brightness-independent test mode for evaluating the detection area.
With detection display in test mode.
Ceiling mounting with integrated spring clip.
Anti-twist protection through additional quick tension.
Settings elements accessible on the front.
Monitoring density: 92 sectors with 368 switching segments.
Individual disconnection and sensitivity adjustment of individual sensors possible.
Switch-off delay: Approx. 1 min. - 30 minutes adjustable
With selectable dynamic switch-off delay.
Suitable for suspended ceilings with panel thickness of 9 to 25 mm.
Installation hole size: Ø 68 mm.
When used in conjunction with a relay/contactor, an RC quenching element no. 6899.
Free APP for IOS and Android available in the APP store or play store.
Recommendation: HaloX® 100 by Kaiser (article no. 1281-00) with appropriate cover (1281-01 or 1281-61 for exposed concrete) or IBtronic H120-68 from Spelsberg
Design line:ProfessionalLINE
