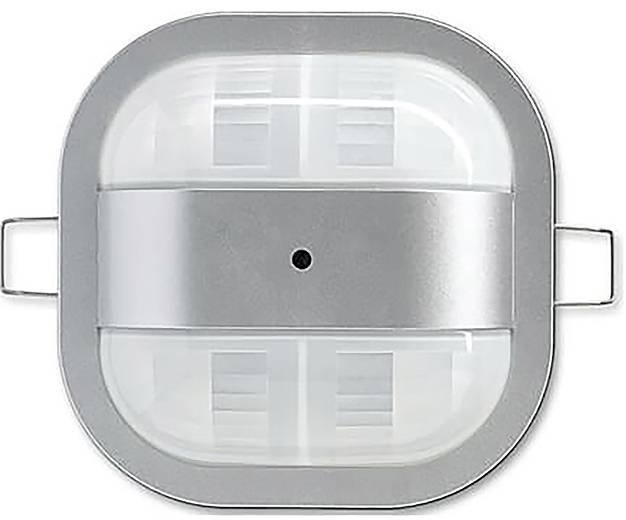

Busch-Jaeger 2CKA006800A2788 Ceiling Occupancy sensor Aluminium
EAN:
Part number:
Item no:
Technical specifications
- Height: 94 mm
- Width 94 mm
- Depth: 76 mm
- Installation depth: 49 mm
- Design: Presence detectors
- Mounting type: Other
- Material: Plastic
- Colour: Aluminium
- Protection class (IP) IP40
- Surface protection: Painted
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Connection type: Plug-in terminal
- Halogen-free: Yes
- Voltage type AC
- Mains frequency: 50/60 Hz.
- Suitable for C-Load: No.
- Min Depth of the device socket 49 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 68 mm
- Material quality: Thermoplastic
- Antibacterial treatment: No.
- RAL number (similar): 9006
- Response brightness adjustable: No.
- Optimum mounting height 2 m.
- Max. Range to one side: 1.5 m.
- Max. Range: Front 12 m
- Horizontal coverage angle: 90..360°
- Staircase monitoring: Yes
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: No.
- Dimming function with dimming element: No.
- Animal slope: No.
- Extension input: No.
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced switching: No.
- Forced shutdown: No.
- Scan angle 360°
- Bridge switch: No.
- Max. Presence area: 72 m²
- Remote control: No.
- With signal unit: No.
- Switch-off delay 0 s.
- Response brightness 5 - .2000 Lux
- Temperature: -5..45°C
- Alarm function: No.
- Switch-on delay 0 s.
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Number of switching zones: 368
- Product type
Occupancy sensor
12 m
- Mounting type
Ceiling
- Operating voltage
230 V
- Factory colour
Aluminium
- Similar RAL
9006
- Width
94 mm
- Height
94 mm
- (Ø)
68 mm
- Dim
(Ø x H) 68 mm x 94 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550962 Busch-Jaeger 2CKA006800A2788 Ceiling Occupancy sensor Aluminium
Description
Slave presence detector to expand the detection range of Master presence detectors. Detection range (at 3 m mounting height): Rectangular persons: Transverse to the detector 24 m x 3 m, front/longitudinal to the detector 14 m x 3 m. Installation height 27 mm. Ceiling mounting with integrated spring clip. Anti-twist protection through additional quick tension. Monitoring density: 92 sectors with 368 switching segments. Suitable for suspended ceilings with panel thickness of 9 to 25 mm. Installation hole size: Ø 68 mm. Recommendation: HaloX® 100 by Kaiser (article no. 1281-00) with appropriate cover (1281-01 or 1281-61 for exposed concrete) or IBtronic H120-68 from Spelsberg
Design line:ProfessionalLINE
