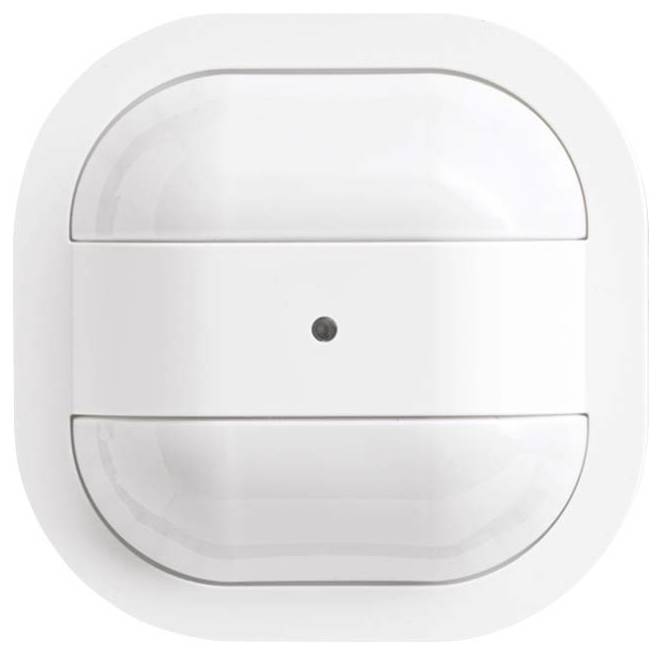

Busch-Jaeger 2CKA006800A2860 Flush mount Occupancy sensor Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Suitable for protection class (IP): IP40
- Response brightness adjustable: Yes
- Max. Range to one side: 6 m.
- Max. Range: Front 6 m
- Capturing field Diameter on floor: 12 m.
- Horizontal coverage angle: 90..360°
- Operating mode switch: No.
- Staircase monitoring: Yes
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Installation height 3 m
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming element: No.
- Animal slope: No.
- With orientation light: No.
- Switch-off delay, self-learning: No.
- Motion detector/button combination: No.
- Product type
Occupancy sensor
12 m
- Mounting type
Flush mount
- Similar RAL
9010
- Height
35 mm
- features
Non-stop lighting mode
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548426 Busch-Jaeger 2CKA006800A2860 Flush mount Occupancy sensor Non-stop lighting mode
Description
Master-presence detector with mixed-light measurement. For brightness and movement-dependent switching of lights. Capturing range (at 3 m mounting height): Circular: Sitting: Up to Ø 10 m, walking people: Up to Ø 12 m. Extension of the detection area by Master/slave combination. Mounting height: 35 mm For semi-and fully automatic operation. Additional possibility of switching on/off via button input. With continuous light/duration off function (8 h), IR service hand-held transmitter is necessary. With teach-in function of the brightness switching threshold, IR service hand-held transmitter is necessary. With brightness-independent test mode for evaluating the detection area. With detection display in test mode. Remote control via IR service hand-held transmitter 6843. Settings elements accessible on the front. Monitoring density: 72 sectors with 640 switching segments. Switch-off delay: Approx. 1 min. - 30 minutes Or short-time pulse adjustable. For Universal-Relay-Insert 6440/01 U. For Universal-e-contact-Use 6440/04 U. For Universal-Slave-Use 6440/05 U. Physically, the detection range is lower with central approximation. The range specifications refer to an ambient temperature of 21 °C. Please order the appropriate UP-insert separately.
