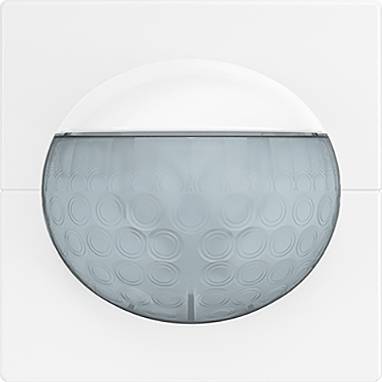

Busch-Jaeger 2CKA006800A3000 Flush mount Motion detector and brightness sensor 180 ° Relay Multicolour Non-stop lighting
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Response brightness adjustable: Yes
- Max. Range to one side: 8 m.
- Max. Range: Front 8 m
- Horizontal coverage angle: 0..180°
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 30 min
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: No.
- Installation height 1.2 m
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: No.
- Dimming function with dimming insert: Yes
- Animal slope: No.
- With orientation light: No.
- Switch-off delay, self-learning: No.
- Motion detector/pushbutton combination: Yes
- Product type
Motion detector and brightness sensor
- Detection angle
180°
8 m
- Mounting type
Flush mount
- Contact type
Relay
- Factory colour
Multicolour
- Similar RAL
9016
- Width
300 mm
- Height
200 mm
- Dim
(W x H x D) 300 x 200 x 400 mm
- Weight
690 g
- features
Non-stop lighting mode
- Depth
400 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548963 Busch-Jaeger 2CKA006800A3000 Flush mount Motion detector and brightness sensor 180 ° Relay Multicolour Non-stop lighting
Description
Motion sensor with ambient light measurement
For automatically switching consumers depending on motion and brightness.
Push button function is possible at any time
For detection to the ground.
For detection in staircases.
With 4 recording levels.
In combination with dimmer insert Flex: Lighting dimmer function and optional light value storage.
With activated switch-off warning in case of staircase operation.
Compatible with all Flex inserts.
Adjusting elements on the rear.
Multi lens: Also suitable for mounting height of 2.20 m.
Extension of the detection area by main/extension combination.
Additional possibility of switching on and off via push-button input at flush-mounting application.
With continuous/continuous-off function.
With detection display in test mode.
Monitoring density: 54 sectors with 224 switching segments.
Switch-off delay: Adjustable approx. 10 s - 30 min or short-time pulse 1 s.
For relay insert Flex, 1-way, 64811 U.
For e-Contact-use Flex, 1-way, 64814 U.
For relay insert Flex, 2-way, 64821 U.
For LED push-button dimmer use Flex, 1-way, 64851 U.
For extension use Flex, 64891 U.
Mounting height 31 mm
Please order the appropriate UP-insert separately.
The range specifications refer to an ambient temperature of 21 °C.
Design line: Platform 63, future® linear, Busch-aXcent®, solo®, karat®
Design line Variant: Future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
Product line: Busch-Flextronics®
This text is machine translated.
