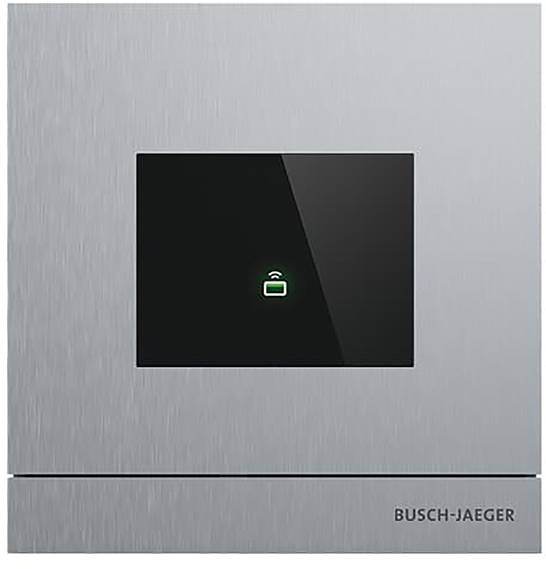

Busch-Jaeger 2CKA008300A0417 Access Control Two-wire Door intercom module Stainless steel
EAN:
Part number:
Item no:
Technical specifications
- Height: 139 mm
- Width 135 mm
- Depth: 29 mm
- Design: Reader
- Colour: Stainless steel
- Housing material: Plastic
- Flush mounting: Yes
- Type of input voltage: DC
- Biometric reading method: No.
- Reading procedure Code: No.
- Reading procedure Data carrier: Yes
- Installation system: Bus system
- Surface mounting: Yes
- With housing: No.
- Operating voltage 28 V.
- Includes keypad: No.
- Number of users: 256
- Aperture angle for camera: 0°
- Hearing aid compatible: No.
- Product type
Access Control
- Component
Door intercom module
- Units
256
- Transfer type
Two-wire
- Leads
2
- Mounting type (outdoor)
Flush mount
- Material (external)
Metal
- Factory colour
Stainless steel
- Width
135 mm
- Height
139 mm
- Depth
29 mm
- Suitable for
Außenstation
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550514 Busch-Jaeger 2CKA008300A0417 Access Control Two-wire Door intercom module Stainless steel
Description
Standalone access control module with transponder reader.
Front plate made of 3 mm metal.
Allows the door of a transponder card to be opened.
256 transponder cards can be programmed.
Stand-alone operation together with the central unit 83300 (power supply and connection for the electric door opener).
Programming directly on the module or via a web browser (requires IP gateway 83342).
Removal tool included.
For flush mounting with 41381F-B-03 / 41381F-H-03.
For surface mounting with 41381S-B-03 / 41381S-H-03.
Consumption units: 1.
Busch-WELCOME® 2-wire product line?
This text is machine translated.
Front plate made of 3 mm metal.
Allows the door of a transponder card to be opened.
256 transponder cards can be programmed.
Stand-alone operation together with the central unit 83300 (power supply and connection for the electric door opener).
Programming directly on the module or via a web browser (requires IP gateway 83342).
Removal tool included.
For flush mounting with 41381F-B-03 / 41381F-H-03.
For surface mounting with 41381S-B-03 / 41381S-H-03.
Consumption units: 1.
Busch-WELCOME® 2-wire product line?
This text is machine translated.
