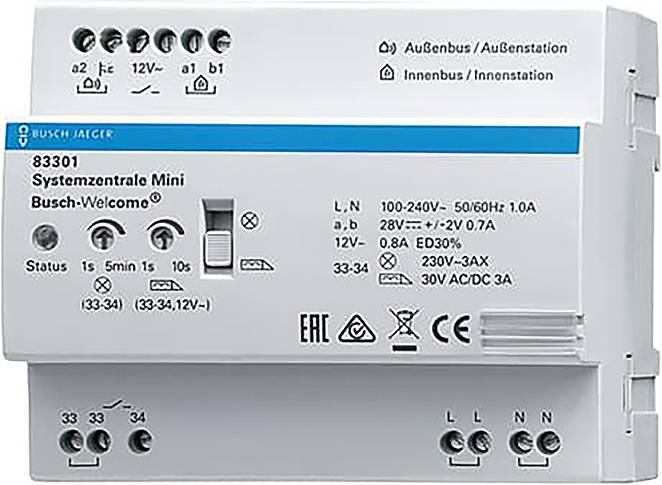

Busch-Jaeger 2CKA008300A0462 Control unit Two-wire Controller Multicolour
EAN:
Part number:
Item no:
Technical specifications
- Height: 90 mm
- Width 106 mm
- Depth: 65 mm
- DIN rail mounting
- Protection class (IP) IP20
- Width in division units: 6
- Mains frequency: 50/60 Hz.
- Input voltage: 230 V
- Application: Video
- Max. output current 0.7 mA
- Current type DC
- Output voltage 28 V
- Short-circuit-proof: Yes
- Installation technology:2-wire
- Control function: Yes
- With contact: Yes
- Integrated door opener circuit: Yes
- Evaluation function: Yes
- Service indicators: Yes
- Programming lock: No.
- Product type
Control unit
- Component
Controller
- Units
31
- Transfer type
Two-wire
- Mounting type (interior)
DIN rail
- Factory colour
Multicolour
- Width
150 mm
- Height
100 mm
- Depth
150 mm
- Weight
1000 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550027 Busch-Jaeger 2CKA008300A0462 Control unit Two-wire Controller Multicolour
Description
Supply and control unit of the Busch-WELCOME® system.
For connecting the inner and outer buses.
For connection of an electric door opener (12 V~, 0.8 A or potential-free output 30 V, 3 A).
For switching the light or for connecting a light relay (230 V, 3 A).
Switching time door opener or light can be set.
For up to 31 consumption units.
For more information on commissioning and operation, refer to the Mini Control Panel Manual.
Busch-WELCOME® 2-wire product line?
This text is machine translated.
For connecting the inner and outer buses.
For connection of an electric door opener (12 V~, 0.8 A or potential-free output 30 V, 3 A).
For switching the light or for connecting a light relay (230 V, 3 A).
Switching time door opener or light can be set.
For up to 31 consumption units.
For more information on commissioning and operation, refer to the Mini Control Panel Manual.
Busch-WELCOME® 2-wire product line?
