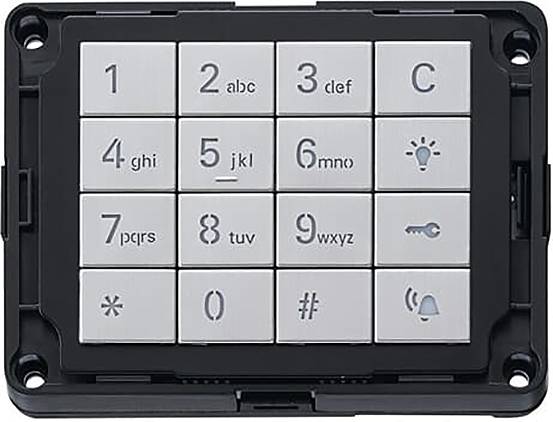

Busch-Jaeger 2CKA008300A0517 Button module Two-wire Bell button module Stainless steel
EAN:
Part number:
Item no:
Technical specifications
- Height: 71 mm
- Width 98 mm
- Depth: 29 mm
- Design: Other
- Colour: Stainless steel
- Housing material: Plastic
- Flush mounting: Yes
- Type of input voltage: DC
- Biometric reading method: No.
- Reading procedure Code: Yes
- Reading procedure Data carrier: No.
- Installation system: Bus system
- Surface mounting: Yes
- With housing: No.
- Operating voltage 28 V.
- Contains keypad: Yes
- Number of users: 256
- Aperture angle for camera: 0°
- Hearing aid compatible: No.
- Product type
Button module
- Component
Bell button module
- Units
256
- Transfer type
Two-wire
- Leads
2
- Mounting type (outdoor)
Flush mount
- Material (external)
Plastic
- Factory colour
Stainless steel
- Width
98 mm
- Height
71 mm
- Depth
29 mm
- Suitable for
Innenstation
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547945 Busch-Jaeger 2CKA008300A0517 Button module Two-wire Bell button module Stainless steel
Description
For integration in letter boxes and bell systems from different manufacturers, for example in products from the company Erwin RENZ Metallwarenfabrik GmbH & Co KG, Boschstr. 3, 71737 Kirchberg/Murr.
The cutout must be created by the manufacturer.
Keyboard can also be used for direct selection of Busch-WELCOME® indoor stations.
256 users can be trained.
Stand-alone operation together with the central unit 83300 (power supply and connection for the electric door opener).
Programming directly on the module or via a web browser (requires IP gateway 83342).
Consumption units: 1.
Suitable for application with the camera interface (83327) as well as the camera module 180° (83503).
Busch-WELCOME® 2-wire product line?
