Busch-Jaeger 2TMA130010A0017 Outer station Corded Outdoor panel Aluminium
EAN:
Part number:
Item no:
Technical specifications
- Colour: Aluminium
- Protection class (IP) IP54
- Number of call/ring buttons: 2
- Material front: Aluminium
- Product type
Outer station
- Component
Outdoor panel
- Units
2
- Features
Peephole spy camera
- Transfer type
Corded
- Mounting type (outdoor)
Surface-mount
- Material (external)
Aluminium
- Factory colour
Aluminium
- Max. viewing angle hor.
86°
- Vertical viewing angle
73°
- Suitable for
Außenstation
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548487 Busch-Jaeger 2TMA130010A0017 Outer station Corded Outdoor panel Aluminium
Description

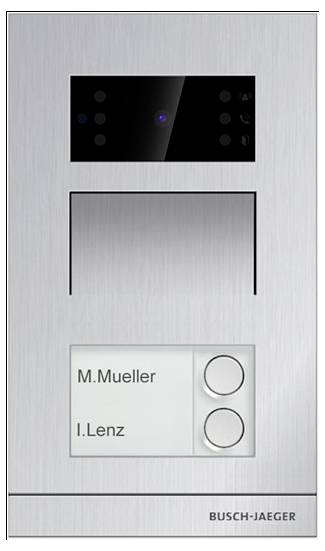

Outdoor station Video Mini surface-mounted with two bell buttons.
With built-in RFID reader, for example, for transponder D081xx-03.
Integrated status display via LED symbols (meets DIN 18040).
With integrated door opener contact (direct connection of door opener possible).
Connection option for a door opener button (Exit button).
With integrated connection for the door status (connection of a reed contact).
Camera resolution 640x480 pixels.
Angle of view diagonal/horizontal/vertical: 104°/86°/73°.
Power supply via PoE standard according to 802.3af (class 3) or via 24 V auxiliary voltage.
Note: Suitable flush or surface mounted box is included in the range of supply.
A wall socket is not available.
Product line: Busch-Welcome® IP
This text is machine translated.
With built-in RFID reader, for example, for transponder D081xx-03.
Integrated status display via LED symbols (meets DIN 18040).
With integrated door opener contact (direct connection of door opener possible).
Connection option for a door opener button (Exit button).
With integrated connection for the door status (connection of a reed contact).
Camera resolution 640x480 pixels.
Angle of view diagonal/horizontal/vertical: 104°/86°/73°.
Power supply via PoE standard according to 802.3af (class 3) or via 24 V auxiliary voltage.
Note: Suitable flush or surface mounted box is included in the range of supply.
A wall socket is not available.
Product line: Busch-Welcome® IP
This text is machine translated.
