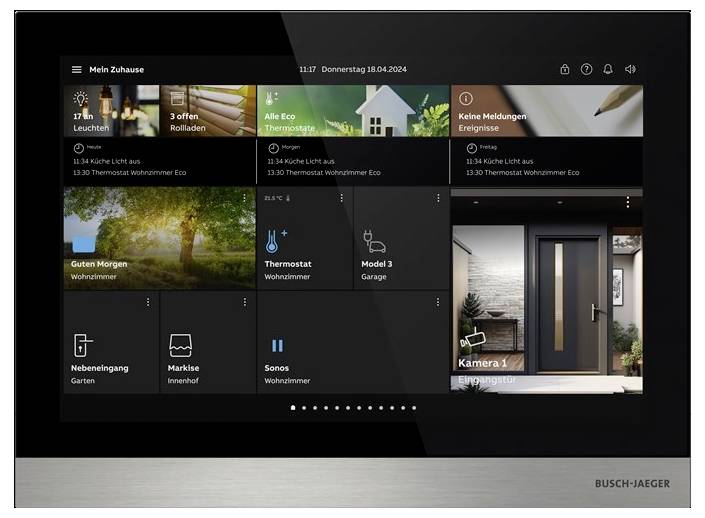

Busch-Jaeger 2TMA130050B0058 Inside station H8237-4B-03
EAN:
Part number:
Item no:
Technical specifications
- Height: 65 mm
- Width 230 mm
- Depth: 360 mm
- Mounting type: Surface-mounted
- Material: Other
- Colour, black
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Interface type: Other
- Screen size 254 mm (17")
- Screen size in inches: 10 inches
- Installation technology: Other
- Hearing aid compatible: Yes
- PTZ Function (Pan/Tilt/Zoom): No.
- Image system PAL
- Image system property: Color
- With video: Yes
- Bug-proof: Yes
- Smartphone connection possible: Yes
- Internal communication: Yes
- Hands-free: Yes
- With memory function: Yes
- Operation door opener: Yes
- Switching functions: Yes
- Function lamps: Yes
- With automatic door opener: Yes
- Call cut-off: Yes
- Call differentiation: Yes
- Additional unit can be stacked end-to-end: Yes
- Volume control: Yes
- With touch-screen: Yes
- Depth
360 mm
- Height
65 mm
- Width
230 mm
- Features
Dimmer function
- Hub
Not required, optional for remote access
- Transfer Standard (Smart Home)
Wi-Fi
- Mounting type
Surface-mount
Flush mount
- Operating voltage
24 V DC
- Used at
Indoors
Manufacturer-specific
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550048 Busch-Jaeger 2TMA130050B0058 Inside station H8237-4B-03
Description
Central control panel for Busch-Welcome® IP and optional Busch-free@home® or KNX.
For central control of up to 100 freely configurable KNX control elements. The programming is done by means of ETS DCA.
Functions of type: Switching, dimming, blinds, RTR, scene, Philips HUE
Note: KNX connection is performed by means of KNXnetIP tunneling. A KNX IP router or KNX IP interface is required in the system.
Alternatively, automatic display of all Busch-free@home® control frames with room structure.
An individual operator side with up to 18 freely configurable control frames.
Two dashboard pages with up to 12 control frames.
With integrated room temperature controller and temperature sensor.
Representation of the video image of the external station.
During the call, a picture of the visitor can be taken and stored in the image memory.
In case of door calls in absence, three images of the visitor are automatically saved in the picture memory.
Different ring tones can be set for door and floor calling.
Five polyphonic ringtones to choose from.
Individual ring tones (can be integrated via SD card)
Adjustable ring volume.
SD-card slot for extending the picture memory.
Equipped with an audio loop for connecting the audio signal to hearing aids.
Capacitive HD display with glass surface (resolution: 1280x800).
With hands-free function
Hands-free volume adjustable.
Individual audio absence function
Surface or flush mounting suitable (socket not included)
For flush-mounting with 42361F-03
For surface mounting with 42371S-x-03.
For integration in the myBUSCH-JAEGER portal.
Allows you to integrate tablet or smartphone with installed Busch-free@home® next APP or Busch-Welcome® APP as a mobile indoor location for audio and video communication.
Up to 4 mobile devices can be combined in each case.
Please refer to our my.Busch-Jaeger license model.
For more information, please visit my.busch-jaeger.de
Rated current 440 mA (24 V DC).
Power supply via Power over Ethernet (PoE) 802.3af.
Alternative power supply via plug mains adapter 53011PS-03.
WLAN (802.11a/b/g/n).
For the ideal connection of the LAN cable, the installation of an electronic box is recommended for the surface mounting.
Product line: Busch-free@home®, KNX, Busch-Welcome® IP
