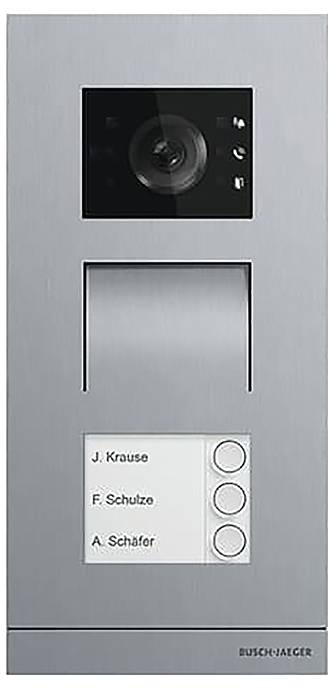

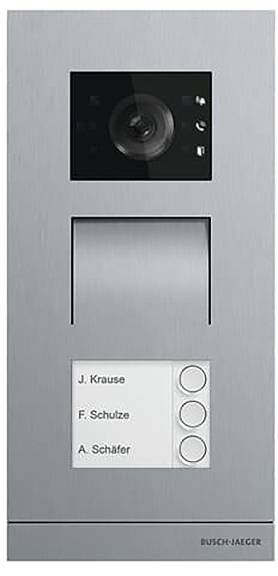

Busch-Jaeger 2TMA200010X0005 Camera Two-wire Camera Stainless steel
EAN:
Part number:
Item no:
Technical specifications
- Height: 277 mm
- Width 135 mm
- Depth: 29 mm
- With cover: No.
- Mounting type: Flush-mounted
- Colour: Stainless steel
- Protection class (IP) IP54
- Impact strength: IK07
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Surface treatment: Brushed
- Installation system: Bus system
- Manually adjustable camera: No.
- Number of call/ring buttons: 3
- Operating mode: Push button
- Modular design: Yes
- With camera: Yes
- Material front: Stainless steel
- Product type
Camera
- Component
Camera
- Transfer type
Two-wire
- Mounting type (interior)
Flush mount
- Mounting type (outdoor)
Surface-mount
- Material (external)
Non-corrosive steel
- Factory colour
Stainless steel
- Max. viewing angle hor.
100°
- Vertical viewing angle
70°
- Width
135 mm
- Height
277 mm
- Depth
29 mm
- Suitable for
Außenstation
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547967 Busch-Jaeger 2TMA200010X0005 Camera Two-wire Camera Stainless steel
Description
Video camera with automatic day/night switchover and infrared LEDs for illumination of the night recordings.
Integrated status display via LED symbols (meets DIN 18040).
Equipped with an audio loop for connecting the audio signal to hearing aids.
Hands-free unit and button module are backlit.
Enclosed labeling foil and removal tool.
For flush mounting with 41383F-x-03.
For surface mounting with 41383S-x-03.
For mounting in concealed facades also with 41383PB-03.
Angle of view diagonal/horizontal/vertical: 130°/100°/70°.
Button module is backlit.
Front plate made of 3 mm stainless steel.
Consumption units: 8.
