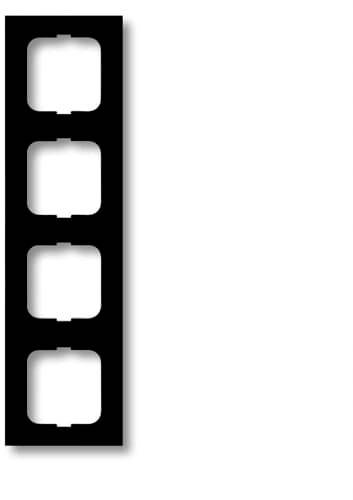

Busch-Jaeger 4x Frame Bracket Future Linear Jet black (RAL 9005), Black 2CKA001754A4422 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
future® linear cover frame
- Busch & Jaeger Switch Product Range
Technical specifications
- With mounting frame: No.
- Number of switch inserts: 4
- Installation width 0
- Installation height 0
- Suitable for installation: No.
- Suitable for device installation channel: Yes
- Suitable for underfloor duct socket: No.
- Suitable for flush-mounted installation: Yes
- Direction of fitting: Horizontal and vertical
- Number of units: 4
- Text Box/Label Area: No.
- Impact strength: IK03
- With hinged lid: No.
- Fastening method: Clamp fastening
- Halogen-free: Yes
- Protection class (IP): IP20
- Transparent: No.
- Material quality: Thermoplastic
- RAL number (similar): 9005
- Surface type: Matt
- Surface: Painted
- Colour, black
- Material: Plastic
- Height: 293
- Width 80
- Depth: 11
- Number of units horizontal: 4
- Number of units vertical: 4
- Diameter of hole (opening): 71
- Number of horizontal modules (for modular design): 4
- Number of modules vertical (for modular design): 4
- Type
future® linear cover frame
- Switch type function
Bracket
- Product type
Switch product range
- Switch type component
Frame
- Type series
Future Linear
- Factory colour
Jet black (RAL 9005)
Black
IP20
- Dim
(W x H x D) 150 x 50 x 250 mm
- Content
1 pc(s)
- Material
Thermoplastic
- Depth
250 mm
- Height
50 mm
- Width
150 mm
- Weight
640 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2334462 Busch-Jaeger 4x Frame Bracket Future Linear Jet black (RAL 9005), Black 2CKA001754A4422 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2334462 Busch-Jaeger 4x Frame Bracket Future Linear Jet black (RAL 9005), Black 2CKA001754A4422 1 pc(s)
Description
With small corner radii for cut channel covers.
