Busch-Jaeger Black 2CKA006512A0353 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

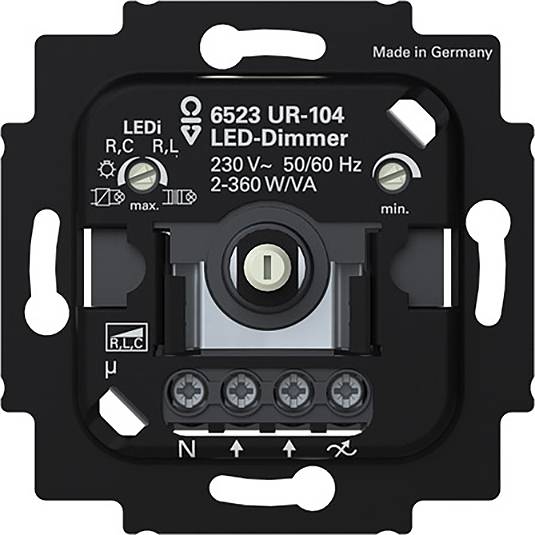

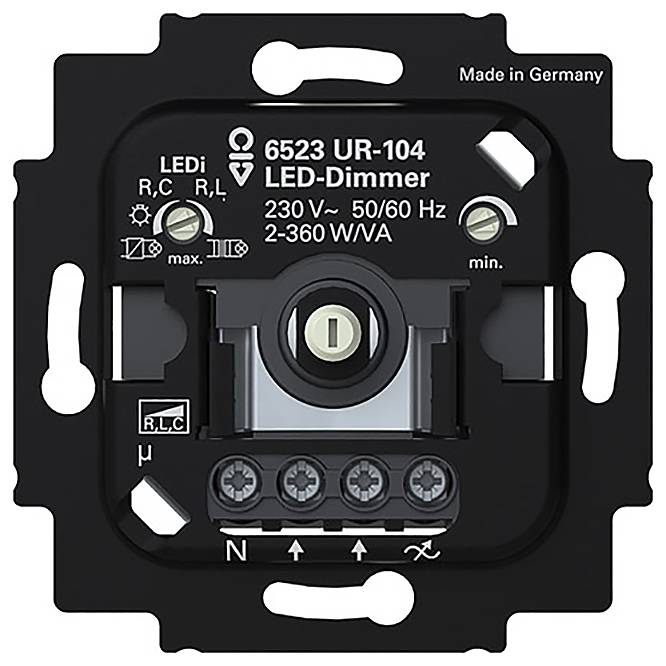

Busch-Jaeger LED dimmer. 2+3 wire with N terminal 6523 UR-104
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour, black
- Surface protection: Untreated
- Impact strength: IK00
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Type of connection: Screw terminal
- Halogen-free: No.
- Mains frequency: 50/60 Hz.
- Max. Switching capacity LED 360 W
- Power consumption: 0 W
- Min Depth of the device socket 20 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Dimming of phase section: Yes
- Dimming of leading edge: Yes
- Material quality: Thermoplastic
- Mounting method: Fixing with screw
- Suitable for protection class (IP): IP20
- Extension input: No.
- Assembly: Base element
- Device width 71 mm
- Device height 71 mm
- Device depth 42 mm
- Lastart: Universal and LED retrofit
- Rotary/pushbutton operation
- Wire cross-section: 1..2.5 mm²
- Can be used with button: No.
- Can be used with a motion detector: No.
- Can be used with presence detector: No.
- Can be used with timer/timer: No.
- Can be used with IR key: No.
- Light value storage: Yes
- Can be used with radio button: No.
- APP control via Bluetooth: No.
- Series dimmer: No.
- Min Adjustable brightness: Yes
- Control voltage 220 .240 V
- Type
Busch-Jaeger LED dimmer. 2+3 wire with N terminal 6523 UR-104
- Product type
Switch product range
- Factory colour
Black
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545243 Busch-Jaeger Black 2CKA006512A0353 1 pc(s)
Description
Optimised for dimming retrofit LED lights (Ledi).
For dimmable retrofit LED lamp (Ledi).
For dimmable retrofit LED bulbs (Ledi) with conventional or electronic transformers
For bulbs, 230 V halogen lamps, low voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy saving lamps.
Ledi mixed operation and conventional lamps are possible.
With manually adjustable operating mode: Phase forward / phase section.
Adjustable minimum/maximum brightness.
Without spread
Without central panel.
Can be illuminated using a glow lamp.
Neon lamp included with the central disk.
With rotary operation, two-way pushbutton switch and soft snap-on.
2/3-conductor connection technology (neutral wire not required)
Neutral conductor optionally connectable (for connecting low loads, < 10 W/VA, recommended).
Low noise through the use of MOSFET-transistors.
Short circuit-proof and overload protected (electronic fuse).
Nominal power L 2 - 100 W/VA (phase control)
Nominal power R,C: 10-200/360 W/VA (phase section)
Rated power Ledi: 2-100 W/VA (phase section) , 2-200 W/VA (phase section)
Consider ~20% transformer losses on conventional transformers.
Consider ~5% transformer losses on electronic transformers.
Mounting in UP sockets according to DIN 49073
Very low mounting depth < 20 mm
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure, Alpha nea®, Alpha exclusive®
This text is machine translated.
For dimmable retrofit LED lamp (Ledi).
For dimmable retrofit LED bulbs (Ledi) with conventional or electronic transformers
For bulbs, 230 V halogen lamps, low voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy saving lamps.
Ledi mixed operation and conventional lamps are possible.
With manually adjustable operating mode: Phase forward / phase section.
Adjustable minimum/maximum brightness.
Without spread
Without central panel.
Can be illuminated using a glow lamp.
Neon lamp included with the central disk.
With rotary operation, two-way pushbutton switch and soft snap-on.
2/3-conductor connection technology (neutral wire not required)
Neutral conductor optionally connectable (for connecting low loads, < 10 W/VA, recommended).
Low noise through the use of MOSFET-transistors.
Short circuit-proof and overload protected (electronic fuse).
Nominal power L 2 - 100 W/VA (phase control)
Nominal power R,C: 10-200/360 W/VA (phase section)
Rated power Ledi: 2-100 W/VA (phase section) , 2-200 W/VA (phase section)
Consider ~20% transformer losses on conventional transformers.
Consider ~5% transformer losses on electronic transformers.
Mounting in UP sockets according to DIN 49073
Very low mounting depth < 20 mm
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure, Alpha nea®, Alpha exclusive®
This text is machine translated.
