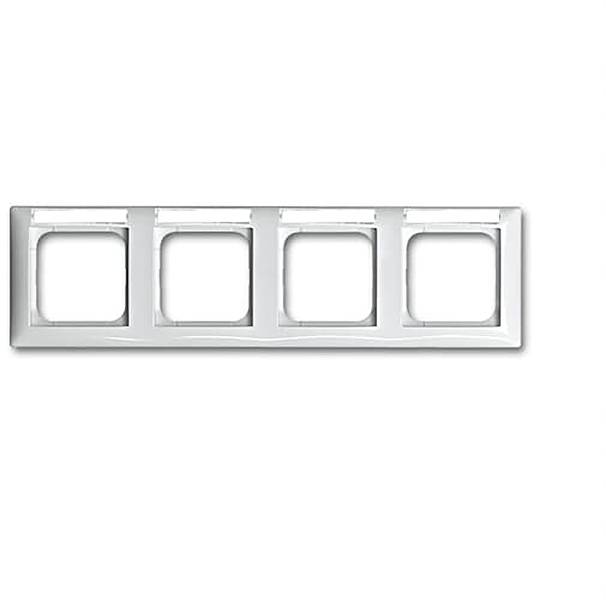

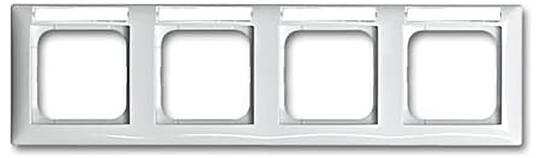

Busch-Jaeger Frame Marking field Busch-balance SI 2CKA001754A4832 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger frame 4-f labeled 1734 NSK-914
- Busch & Jaeger Switch Product Range
Technical specifications
- Height: 81 mm
- Width 294 mm
- Depth: 12 mm
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- Mounting width 55 mm
- Mounting height 55 mm
- Surface protection: Untreated
- Impact strength: IK03
- Transparent: No.
- Surface design: Glossy
- With hinged cover: No.
- Halogen-free: Yes
- Flush mounting: Yes
- Material quality: Thermoplastic
- Mounting method: Clamp mounting
- Antibacterial treatment: No.
- RAL number (similar): 9010
- Number of units: 4
- Mounting direction: Horizontal
- Number of units horizontal: 4
- With mounting frame: No.
- Suitable for underground passage box: No.
- Suitable for device installation channel: Yes
- Suitable for panel mounting: No.
- Text field/label area: Yes
- Diameter boring (opening): 71 mm
- Type
Busch-Jaeger frame 4-f labeled 1734 NSK-914
- Switch type function
Marking field
- Product type
Faceplate
- Switch type component
Frame
- Type series
Busch-balance SI
- Dim
(W x H x D) 200 x 100 x 250 mm
- Content
1 pc(s)
- Similar RAL
9010
- Material
Thermoplastic
- Depth
250 mm
- Height
100 mm
- Width
200 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547246 Busch-Jaeger Frame Marking field Busch-balance SI 2CKA001754A4832 1 pc(s)
Description
To cover switches, buttons and sockets.
Horizontal
With viewing window and inscription plate.
Design line: Busch-balance® SI
Dimensions of the label field 46.9 x 6 mm
This text is machine translated.
Horizontal
With viewing window and inscription plate.
Design line: Busch-balance® SI
Dimensions of the label field 46.9 x 6 mm
