Busch-Jaeger Insert PG socket Pure white (RAL 9010), White 2CKA001684A0331 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

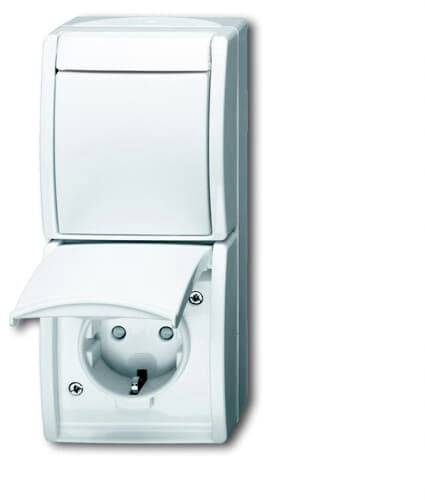

Combination SCHUKO® socket outlet, with rocker switch
- Busch & Jaeger Switch Product Range
Technical specifications
- Rated current 16
- Direction of fitting: Vertical
- Fastening method: Fixing with screw
- Halogen-free: Yes
- Transparent: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Surface type: Matt
- Surface: Untreated
- Colour: white
- Material: Plastic
- Min Depth of socket: -
- Suitable for protection class (IP): IP44
- Mounting type: Surface-mounted
- Operating mode: Rocker/button
- Nominal voltage 250
- Number of active contacts (round): 2
- Number of active contacts (flat): 0
- Fault current protection: No.
- With micro fuse: No.
- Surge protection: No.
- Device width 74
- Device height: 166
- Device depth: 55
- Number of sockets: 1
- Socket type: SCHUKO
- Type of switch: Toggle switch
- With lighting: No.
- Nominal current socket: 16
- Type
Combination SCHUKO® socket outlet, with rocker switch
- Switch type function
PG socket
- Product type
Switch product range
- Switch type component
Insert
- Factory colour
Pure white (RAL 9010)
White
- Nominal voltage
250 V
- Nominal current
16 A
IP44
- Dim
(L x W x H) 150 cm x 100 mm x 100 mm
- Content
1 pc(s)
- Material
Thermoplastic
- Depth
150 mm
- Height
100 mm
- Length
150 cm
- Width
100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2333930 Busch-Jaeger Insert PG socket Pure white (RAL 9010), White 2CKA001684A0331 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2333930 Busch-Jaeger Insert PG socket Pure white (RAL 9010), White 2CKA001684A0331 1 pc(s)
Description
Off and changeover switchFor vertical mounting.2 P + E,
