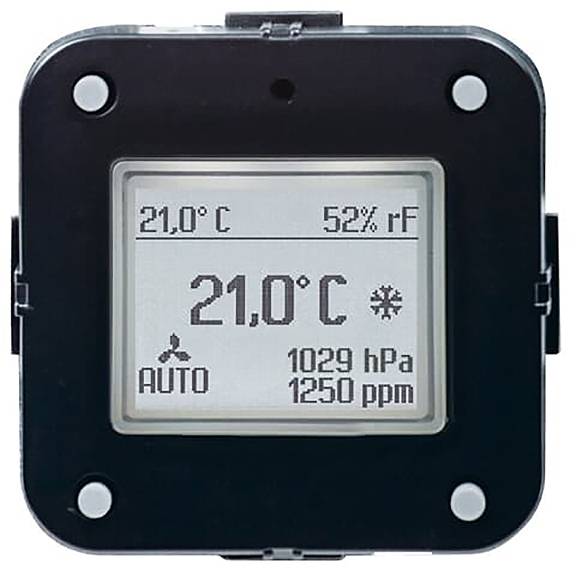

Busch-Jaeger KNX 2CKA006134A0316 Room thermostat 6109/28
EAN:
Part number:
Item no:
Technical specifications
- Design: CO2-sensor
- Mounting type: Flush-mounted
- Colour, black
- Protection class (IP) IP20
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With bus connection: No.
- With heater: No.
- Analogue input: Yes
- Number of digital inputs: 5
- Product type
Room thermostat
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Test function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548384 Busch-Jaeger KNX 2CKA006134A0316 Room thermostat 6109/28
Description
Control element with room temperature control function and CO2/humidity/air pressure sensor.
For controlling HVAC actuators.
Universal input with:
- Max. 5 binary inputs
- 4 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V
- 2 binary inputs and 1 analog input for controlling sensors with external power supply 1-10V/0-10V and an external temperature sensor PT1000 / 6226T / DP4-T-1.
With an integrated temperature sensor.
With temperature display TARGET value.
Master-/slave operation.
With base load operation
The bus connection takes place via the supplied bus terminal.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
From ETS4: Commissioning via native ETS application
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure, Alpha nea®, Alpha exclusive®
Product line: KNX
