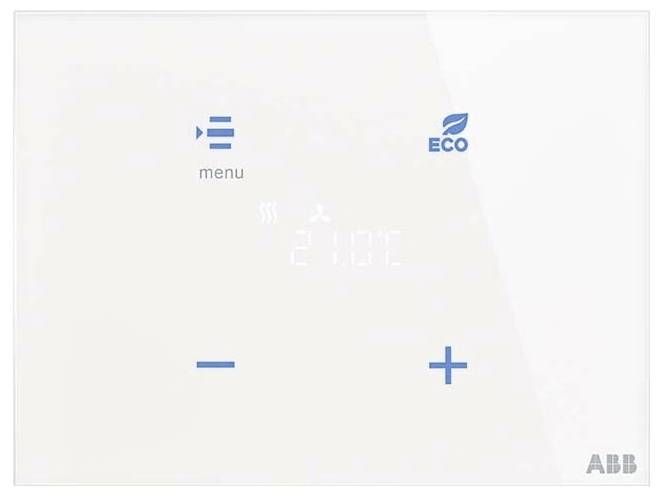

Busch-Jaeger KNX 2CKA006300A1595 Room thermostat TR/U.3.1-CG
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Glass
- Colour: Other
- Protection class (IP) IP20
- Surface protection: Untreated
- Transparent: No.
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: Yes
- Material quality: Other
- With theft/dismantling protection: Yes
- With display: Yes
- With on-site operation: Yes
- External sensor: Yes
- Manual setpoint adjustment: Yes
- Presence switch: No
- Parallel operation possible: No.
- Product type
Room thermostat
- Series
KNX
- Operating voltage
24 V
- Data transfer (Smart Home)
Wired
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549430 Busch-Jaeger KNX 2CKA006300A1595 Room thermostat TR/U.3.1-CG
Description
Ordering is only possible in conjunction with the Design ID. The configuration of symbols and/or texts is done via a web configuration tool: tacteo-configurator.my.busch-jaeger.de Support of the KNX functions by innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. With integrated proximity function. Control element with room temperature controller function for controlling 6164/10, 6164/11 together with KNX heating actuators, standard actuators or analogue actuators (continuous controller). The controller is a constant room temperature controller for fan convection heaters (fan coil) in 2- and 4-pipe systems and conventional heating or cooling systems The fan stage can be switched manually or into automatic mode Class of temperature controller: 1 Contribution to room heating energy efficiency: 1.0%. With integrated KNX bus coupler. Number of bus nodes: 1 with separate 24 V additional power supply
