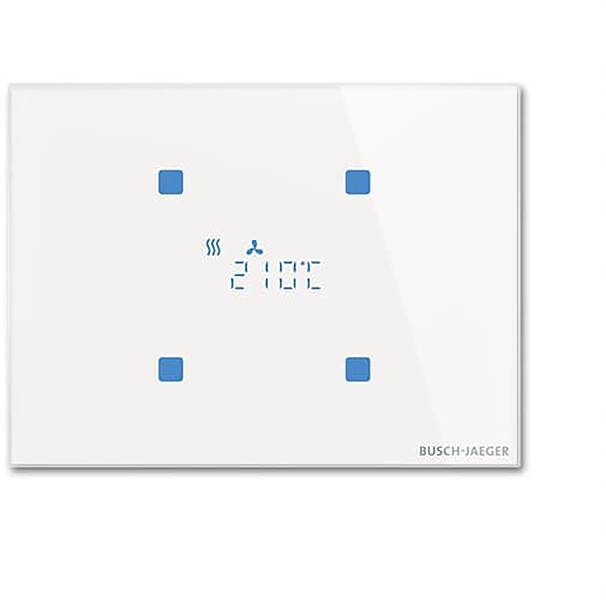

Image similar
Image similar
Busch-Jaeger KNX 2CKA006300A1619 Room thermostat TR/U.2.11-CG
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Glass
- Colour: Other
- Protection class (IP) IP20
- Surface protection: Untreated
- Transparent: No.
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With LED display: Yes
- With bus connection: No.
- Min Depth of the device socket 35 mm
- Material quality: Other
- With theft/dismantling protection: Yes
- With display: Yes
- Assembly: Operating element
- With on-site operation: Yes
- External sensor: Yes
- Manual setpoint adjustment: Yes
- Presence switch: No
- Parallel operation possible: No.
- Temperature controller class: I.
- Product type
Room thermostat
- Series
KNX
- Operating voltage
24 V
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549937 Busch-Jaeger KNX 2CKA006300A1619 Room thermostat TR/U.2.11-CG
Description
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
With integrated proximity function.
The controller is a constant room temperature controller for fan convection heaters (Fan Coil) in 2 and 4-tube systems and conventional heating or cooling systems.
The fan stage can be switched manually or into automatic mode.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
With integrated KNX bus coupler.
Number of bus nodes: 1
With separate 24 V additional power supply.
Motion detectors with up to 4 channels
The bus connection takes place via the supplied bus terminal.
With an integrated temperature sensor.
With integrated KNX bus coupler.
Number of bus nodes: 1.
The configuration of symbols and/or texts is done via a web configuration tool: tacteo-configurator.my.busch-jaeger.de. Ordering is only possible in conjunction with the design ID from the configurator.
These individually produced devices are excluded from exchange. Figure shows configured device.
Design line: Busch-tacteo®
Product line: KNX
This text is machine translated.
With integrated proximity function.
The controller is a constant room temperature controller for fan convection heaters (Fan Coil) in 2 and 4-tube systems and conventional heating or cooling systems.
The fan stage can be switched manually or into automatic mode.
Temperature controller class: 1
Contribution to room heating energy efficiency: 1.0%.
With integrated KNX bus coupler.
Number of bus nodes: 1
With separate 24 V additional power supply.
Motion detectors with up to 4 channels
The bus connection takes place via the supplied bus terminal.
With an integrated temperature sensor.
With integrated KNX bus coupler.
Number of bus nodes: 1.
The configuration of symbols and/or texts is done via a web configuration tool: tacteo-configurator.my.busch-jaeger.de. Ordering is only possible in conjunction with the design ID from the configurator.
These individually produced devices are excluded from exchange. Figure shows configured device.
Design line: Busch-tacteo®
Product line: KNX
This text is machine translated.
