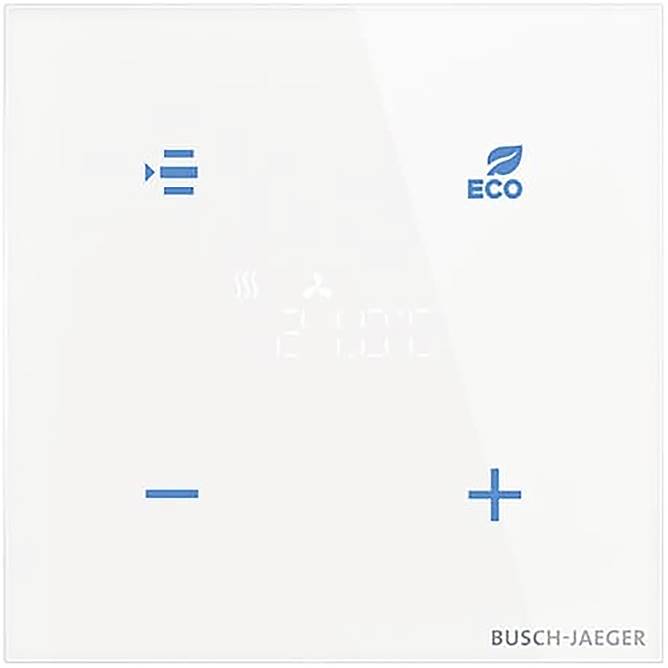

Busch-Jaeger KNX 2CKA006300A1647 Room thermostat TR/U-CG
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Glass
- Protection class (IP) IP20
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With LED indicator: No.
- With bus connection: No.
- Min Depth of the device socket 35 mm
- Material quality: Other
- With theft/dismantling protection: No.
- With display: Yes
- Assembly: Base element with full cover plate
- With on-site operation: Yes
- External sensor: No.
- Manual setpoint adjustment: Yes
- Parallel operation possible: Yes
- Temperature controller class: I.
- Product type
Room thermostat
- Series
KNX
- Used at
Indoors
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552442 Busch-Jaeger KNX 2CKA006300A1647 Room thermostat TR/U-CG
Description
Freely configurable multifunctional control element.
With integrated KNX bus coupler.
With an integrated temperature sensor.
With integrated proximity function.
Button function: Switch / dim / blind / send value / light scenes etc. Support of the KNX functions by innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
The bus connection takes place via the supplied bus terminal.
Number of bus nodes: 1.
Motion detectors with up to 4 channels
The bus connection takes place via the supplied bus terminal.
With an integrated temperature sensor.
With integrated KNX bus coupler.
Number of bus nodes: 1.
The configuration of symbols and/or texts is done via a web configuration tool: tacteo-configurator.my.busch-jaeger.de. Ordering is only possible in conjunction with the design ID from the configurator.
These individually produced devices are excluded from exchange. Figure shows configured device.
Design line: Busch-tacteo®
Product line: KNX
This text is machine translated.
With integrated KNX bus coupler.
With an integrated temperature sensor.
With integrated proximity function.
Button function: Switch / dim / blind / send value / light scenes etc. Support of the KNX functions by innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
The bus connection takes place via the supplied bus terminal.
Number of bus nodes: 1.
Motion detectors with up to 4 channels
The bus connection takes place via the supplied bus terminal.
With an integrated temperature sensor.
With integrated KNX bus coupler.
Number of bus nodes: 1.
The configuration of symbols and/or texts is done via a web configuration tool: tacteo-configurator.my.busch-jaeger.de. Ordering is only possible in conjunction with the design ID from the configurator.
These individually produced devices are excluded from exchange. Figure shows configured device.
Design line: Busch-tacteo®
Product line: KNX
This text is machine translated.
