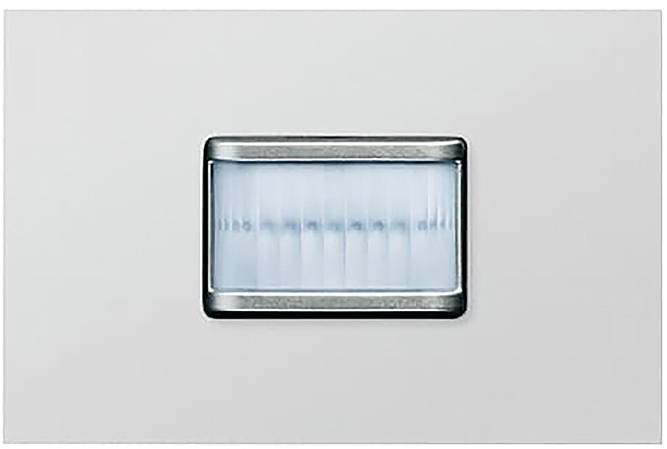

Busch-Jaeger KNX 2CKA006310A0017 Motion detector Max. range (open field) 6 m 6345-866-101
EAN:
Part number:
Item no:
Technical specifications
- Height: 71 mm
- Width 107 mm
- Depth: 31 mm
- Installation depth: 33 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Metal
- Colour: Stainless steel
- Surface protection: Untreated
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Number of channels: 4
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With bus connection: No.
- Min Depth of the device socket 33 mm
- Material quality: Stainless steel
- Response brightness adjustable: Yes
- Optimum mounting height 1.1 m.
- Max. Range to one side: 6 m.
- Max. Range: Front 6 m
- Capturing field Diameter on floor: 6 m.
- Angle of coverage vertical 0..5°
- Horizontal coverage angle: 0..180°
- Product type
Motion detector
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
4
6 m
- Mounting type
Flush mount
- Factory colour
Stainless steel
- Width
107 mm
- Height
71 mm
- Depth
31 mm
- Dim
(W x H x D) 107 x 71 x 31 mm
- Hub
Not required, optional for remote access
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552416 Busch-Jaeger KNX 2CKA006310A0017 Motion detector Max. range (open field) 6 m 6345-866-101
Description
For installation in the 1-way base frame, 2-way and 3-way (6346/10-101, 6346/11-101 and 6346/12-101).
ETS programming only required from ETS 3.0f additional software PowerTool.
Motion detectors with up to 4 channels
Design line: Busch-Prion®
Product line: KNX
This text is machine translated.
ETS programming only required from ETS 3.0f additional software PowerTool.
Motion detectors with up to 4 channels
Design line: Busch-Prion®
Product line: KNX
