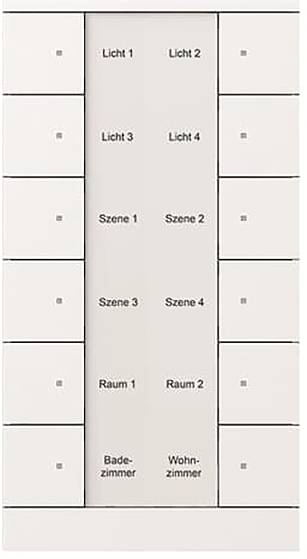

Busch-Jaeger KNX 2CKA006330A0015 Console SB/U12.0.11-84
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Studio white
- Protection class (IP) IP20
- Surface protection: Untreated
- Surface design: Glossy
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: No.
- Min Depth of the device socket 30.7 mm
- Material quality: Thermoplastic
- RAL number (similar): 9016
- With marking field: Yes
- With theft/dismantling protection: Yes
- Number of operating points: 12
- Number of keys: 12
- With display: No.
- With room thermostat: No.
- With infrared sensor: No.
- Product type
Console
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
12
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
n.rel.
- Features
Dimmer function
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548390 Busch-Jaeger KNX 2CKA006330A0015 Console SB/U12.0.11-84
Description
With integrated KNX bus coupler.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
With an integrated temperature sensor.
Number of bus nodes: 1.
Design line: Busch-TenTon®
Product line: KNX
This text is machine translated.
With labeling field.
Support for KNX functions with innovative color concept (yellow=illumination, blue=blind, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green.
Button function: Switch / dim / blind / send value / light scenes etc.
With an integrated temperature sensor.
Number of bus nodes: 1.
Design line: Busch-TenTon®
Product line: KNX
This text is machine translated.
