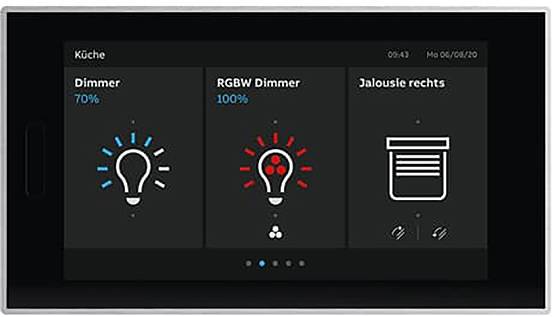

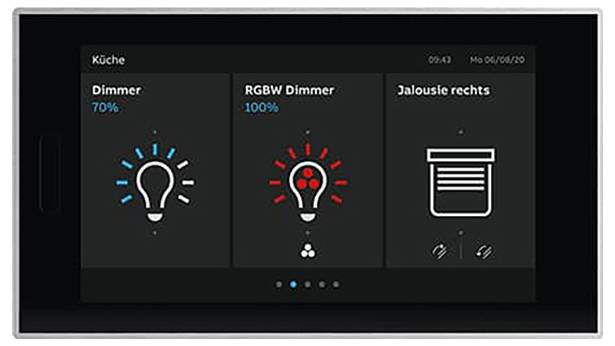

Busch-Jaeger KNX 2TMA200050B0008 Wall touch display RT/U30.0.11-825
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Glass
- Colour, black
- Protection class (IP) IP20
- Surface protection: Painted
- Transparent: No.
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: No.
- Min Depth of the device socket 28 mm
- Material quality: Thermoplastic
- RAL number (similar): 9005
- With theft/dismantling protection: Yes
- Number of operating points: 30
- With display: Yes
- Manual setpoint adjustment: Yes
- Presence switch: Yes
- Status LED: Yes
- IR sensor: No.
- With temperature controller: Yes
- With integrated DCF77 receiver: No.
- With timer switch: Yes
- Central function unit for transmitter/actuator: Yes
- Channels
30
- Factory colour
Multicolour
- Height
11 mm
- Data exchange
Bidirectional (bi)
- Data transfer (Smart Home)
Wired
- Features
Touch function
- Series
KNX
- Hub
Not required, optional for remote access
- Mounting type
Flush mount
- Operating voltage
24 V DC
- Used at
Indoors
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547969 Busch-Jaeger KNX 2TMA200050B0008 Wall touch display RT/U30.0.11-825
Description
Multi-functional HD IPS KNX-Touch-Display as room control for visualization and control of all functions in a KNX system.
For displaying and intuitive operation of the following KNX standard functions: Switching, rocker switch, dimming (4-bit and 8-bit), slide control, blind, RGBW control element, room temperature control element, Split unit control element, wafer switch, scene switch, display element or audio control element.
Further functions: 20 fault and alarm messages, 10 logic functions, 10 time switches each with 6 switching times, 4 scene actuators, 1 room temperature controllers and individual pages can be protected with PIN code.
Status display, display of date and time, as well as display of indoor and outdoor temperature.
Built-in temperature sensor, proximity sensor and brightness sensor.
With a binary input and an external temperature sensor input (PT1000 / 6226/T).
The KNX touch display can be mounted horizontally or vertically.
In portrait (vertical) up to 6 operating pages with a total of 30 control elements are possible.
In landscape format (horizontal) up to 10 operating pages with a total of 30 control elements are possible.
Viewing angle of 160° - 160°
The flush and/or hollow wall mounting is done via the separate flush-mounted BOX/U5.11.
Requires additional power supply 24 VDC, for example 6358-101.
Power consumption 250 mA
Display size 12.7 cm (5").
Mounting height 11 mm
Additional software DCA is required.
Design line: Busch-RoomTouch®
Product line: KNX
