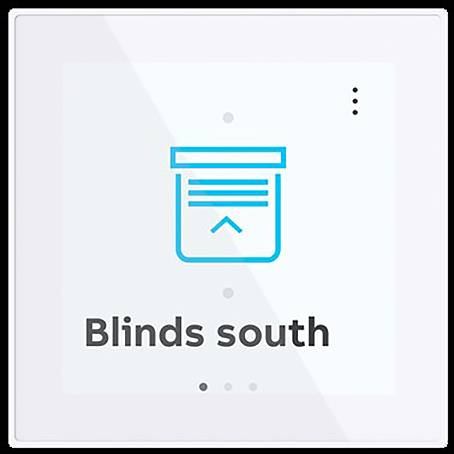

Busch-Jaeger KNX 2TMA310010W0001 Wall touch display RT/U12.86.11-811
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Colour: Other
- Protection class (IP) IP20
- KNX bus system: Yes
- LON bus system: Yes
- Bus system Powernet: Yes
- Other bus systems: Without
- Bus system KNX radio: Yes
- Bus system: Yes
- With bus connection: Yes
- Assembly: Operating element
- Product type
Wall touch display
- Series
KNX
- Operating voltage
24 V DC
- Data transfer (Smart Home)
Wireless
- Mounting type
Flush mount
- Factory colour
Multicolour
- Width
114.0000 mm
- Height
56.0000 mm
- Depth
114.0000 mm
- Dim
(W x H x D) 114.0000 x 56.0000 x 114.0000 mm
- Hub
Not required, optional for remote access
- Weight
0.2290
- Features
Dimmer function
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548924 Busch-Jaeger KNX 2TMA310010W0001 Wall touch display RT/U12.86.11-811
Description
Freely programmable touch panel with a 4-inch IPS monitor with 480x480 resolution that allows you to control and monitor the free@home or KNX system.
Control, monitor and manage your entire installation on one device:
Switch - dim - slide control - blind - RGBW control element - switch selector switch - display element - audio control element.
The display contains a brightness and proximity sensor.
The operation is supported with haptic feedback.
The display features an integrated temperature controller (RTC) with integrated temperature sensor.
A remote sensor (e.g. 6226/T / PT1000) can be optionally connected to the rear input for measuring the temperature.
An additional 24 VDC power supply (e.g. 6358-101) is necessary to operate.
KNX
Up to 12 operating pages can be created.
A maximum of 4 touch surfaces are possible on each side.
A total of 12 operating functions per device.
10 PCs Scene actuators, 10 pieces Logic functions, 10 piece Presence simulations and time programs,
18 PCs Fault and alarm messages.
The primary function enables the direct operation of a function when touching the display.
The rear input can alternatively be used as remote sensor as binary input.
free at home:
Up to 16 operating functions can be set on up to 4 pages.
A maximum of 4 touch surfaces are possible on each side.
The scene function, logic functions, presence simulation, and time programs are already provided in free@home by the System Access Point and are not additionally required in the display.
Fault and alarm messages are called "
Pop-up"
.
The input on the rear can be used for the connection of a remote sensor (e.g. 6226/T / PT1000).
Design line: Busch-RoomTouch®
Product line: KNX, Busch-free@home®
This text is machine translated.
