Busch-Jaeger Multicolour 2CDG510026R0021 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

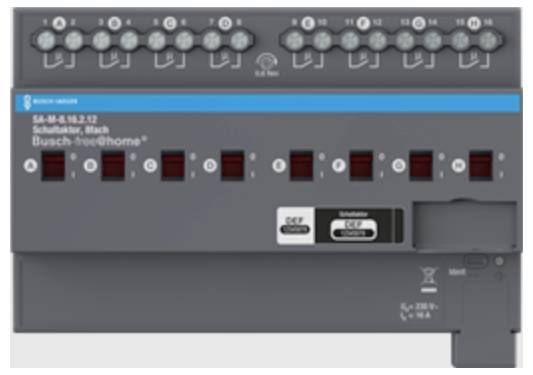

Busch-Jaeger switch actuator, 8-way 16 A reg SA-M-8.16.2.12
- Busch & Jaeger Switch Product Range
Technical specifications
- Rated current 16 A
- Mounting type: REG
- Protection class (IP) IP20
- Width in division units: 8
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Rated operating voltage: 230 V
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- Max. breaking capacity 2500 W
- Power output: 2500 W
- Suitable for C-Load: No.
- Max. Number of switching outputs: 8
- Max. switching current 16 A
- Different phases can be connected: Yes
- With bus connection: No.
- Bus module removable: No.
- Modular expansion option: No.
- Min Depth of the device socket 63.5 mm
- Type
Busch-Jaeger switch actuator, 8-way 16 A reg SA-M-8.16.2.12
- Product type
Switch product range
- Factory colour
Multicolour
- Content
1 pc(s)
- Mounting type
REG
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547286 Busch-Jaeger Multicolour 2CDG510026R0021 1 pc(s)
Description
Switch actuator 8-fold for Busch-free@home®
With 8 independent potential-free contacts switches electrical consumers via Busch-free@home®.
For each output the manual operation of the contact is possible.
The switch state of the contact is displayed.
The 16A standard series is suitable for switching resistive loads (AC1).
Product line: Busch-free@home®
This text is machine translated.
With 8 independent potential-free contacts switches electrical consumers via Busch-free@home®.
For each output the manual operation of the contact is possible.
The switch state of the contact is displayed.
The 16A standard series is suitable for switching resistive loads (AC1).
Product line: Busch-free@home®
This text is machine translated.
