Busch-Jaeger Multicolour 2CKA001032A0539 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

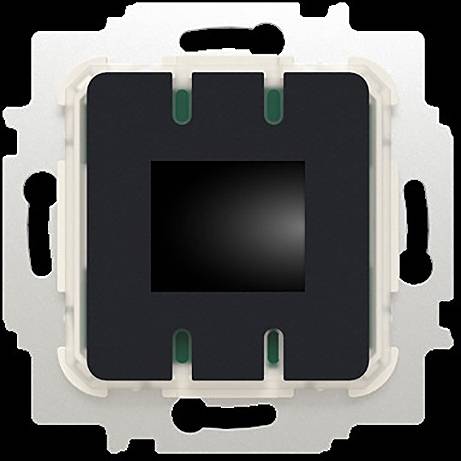

Busch-Jaeger room temp.-regulator insert 1099 UKTA-BT
- Busch & Jaeger Switch Product Range
Technical specifications
- Height: 71 mm
- Width 71 mm
- Depth: 39 mm
- Mounting type: Flush-mounted
- Protection class (IP) IP20
- Explosion-proof: No.
- Contact type: Closer (NO)
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With display: Yes
- External sensor: No.
- Connection: Other
- With receiver: No.
- Measuring range 5 - .30 ° C
- Control characteristics: P
- Suitable for heating: Yes
- Number of Heating Outputs: 1
- Suitable for cooling: Yes
- Difference value:0.5 K
- Difference adjustable: Yes
- Sensor type: Other
- Temperature reading: Yes
- With drinking water circuit: No.
- Operation: Key
- With noise level indicator: No.
- Hidden operation: No.
- Number of outputs cooling: 1
- Type
Busch-Jaeger room temp.-regulator insert 1099 UKTA-BT
- Product type
Switch product range
- Factory colour
Multicolour
- Dim
(L x W x H) 150 cm x 100 mm x 50 mm
- Content
1 pc(s)
- Height
50 mm
- Length
150 cm
- Width
100 mm
- Mounting type
Flush mount
- Weight
130 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544204 Busch-Jaeger Multicolour 2CKA001032A0539 1 pc(s)
Description
With Display, Bluetooth.
Manual on-site operation via 6-keys Touch operation.
Display: Indication temperature set value
Also allows querying of the ACTUAL temperature on the display.
With snap fastener
With separate connection for time-controlled night reduction
Convenient configuration of the technical setting via APP, such as:
-Heating type (floor heating, radiator heating,..)
Function of the extension (comfort, ECO, night reduction.)
-Regulator type (PWM regulator, 2-point controller,..)
Display settings
-Lock on-site operation
Comfortable operation via APP such as:
Timer
-Operating mode
Mounting required in UP sockets according to DIN 49073.
Particularly low installation depth:
Matching central disc: 1794 MDRT-xxx
For the controller, adjusting valves are in the " version
closed without current"
Recommended E.G. article no. 6164/10-102, TSA/K230.2.
Adjustable valve type can be selected in the APP.
Switching temperature difference ± 0.5 K.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
This text is machine translated.
