Busch-Jaeger Multicolour 2CKA002011A6306 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

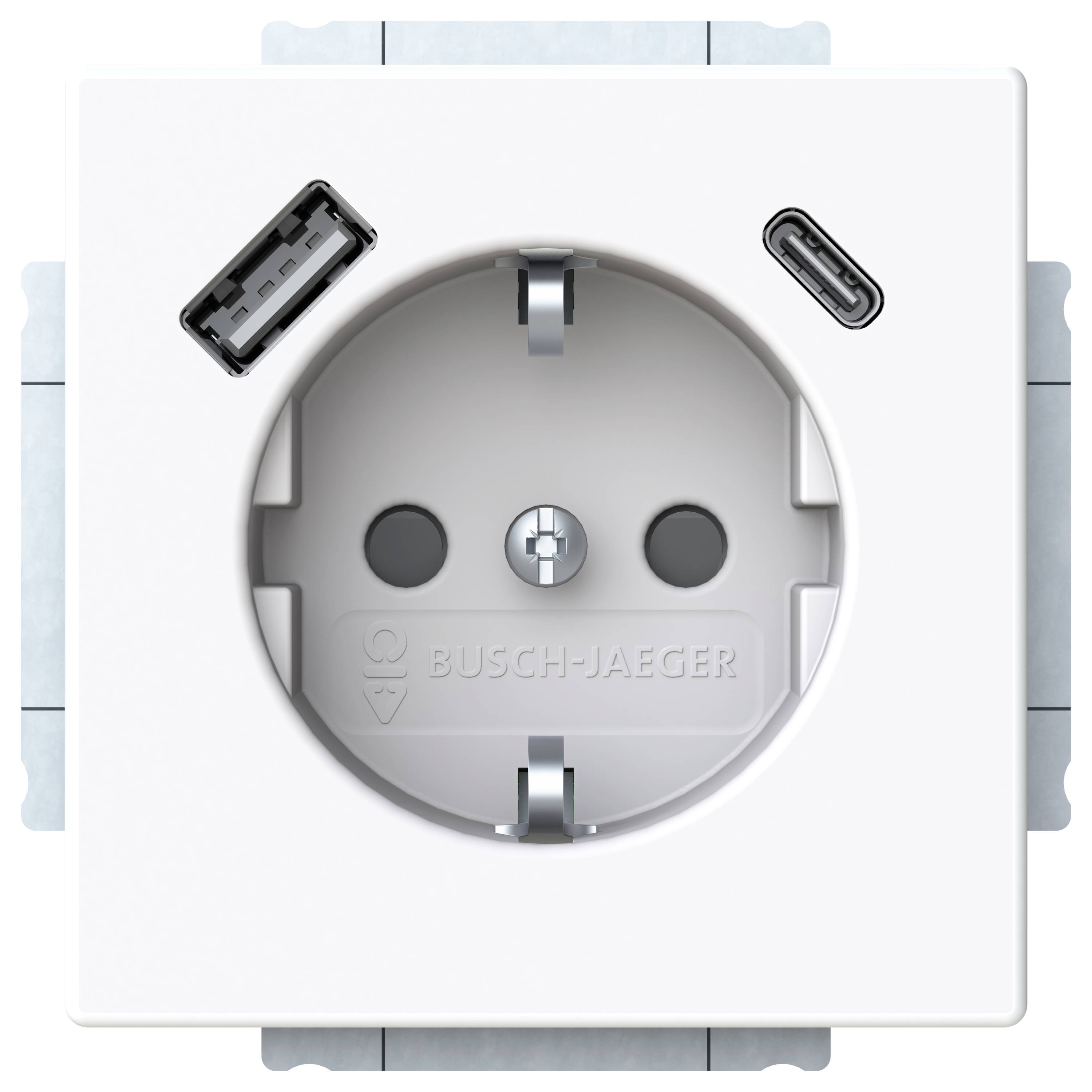

Busch-Jaeger earthing contact socket SB-a+C 20 EUCB2USBAC-84
- Busch & Jaeger Switch Product Range
Technical specifications
- Design: Socket CEE 7/3 (type F)
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Impact strength: IK03
- Surface design: Glossy
- Number of phases: 1
- Nominal voltage: 230 V
- Nominal current: 16 A
- Connection type: Other
- With hinged cover: No.
- Halogen-free: No.
- Rated fault power: 0 mA
- With signal lamp: No.
- Imprint/marking: Without
- Min Depth of the device socket 39.5 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- Mounting type: Claw / screw attachment
- Antibacterial treatment: No.
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Number of units: 1
- Text field/label area: No.
- With orientation light: No.
- Device width 71 mm
- Device height 71 mm
- Device depth 57.8 mm
- Lockable: No.
- Earthed: Earth clips
- Number of active contacts (round): 2
- With increased protection against accidental contact: No.
- Metallic color: No.
- Ejection mechanism: No.
- With function light: No.
- With micro-fuse: No.
- Special power supply: Other
- With loop-through function: No.
- With On / Off switch: No.
- Turned central insert: No.
- Number of USB A ports: 1
- Number of USB-C ports: 1
- Type
Busch-Jaeger earthing contact socket SB-a+C 20 EUCB2USBAC-84
- Product type
Switch product range
- Factory colour
Multicolour
- Dim
(L x W x H) 150 cm x 100 mm x 100 mm
- Content
1 pc(s)
- Depth
150 mm
- Height
100 mm
- Length
150 cm
- Width
100 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547779 Busch-Jaeger Multicolour 2CKA002011A6306 1 pc(s)
Description
For connecting electrical consumers.
Features: 1x USB-A and 1x USB-C.
The USB connection is used to charge and supply mobile devices via USB cable.
With increased contact protection to VDE 0620 standard.
With electronic short-circuit/overload protection.
No data transmission possible.
Mounting in deep UP sockets required according to DIN 49073.
USB-A output - Support of the charging protocols:
Apple MFI with 2.4 A, BC 1.2 DCP with 1.5 A.
USB-C output - supports the charging protocols:
USB PD (Power delivery) with 5 V / 3 A, Apple MFI with 2.4 A, BC 1.2
DCP with 1.5 A.
Rated current: 2.4 A if a type A jack is used.
Rated current: 1.5 A if both bushings are occupied.
Connection terminals according to VDE 0620-1 approved as connection terminals.
When cleaning the device, use dust protection cap 2098 for the USB-A connection.
Design line: Platform 63, future® linear, Busch-aXcent®, solo®, karat®
Design line Variant: Future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
This text is machine translated.
Features: 1x USB-A and 1x USB-C.
The USB connection is used to charge and supply mobile devices via USB cable.
With increased contact protection to VDE 0620 standard.
With electronic short-circuit/overload protection.
No data transmission possible.
Mounting in deep UP sockets required according to DIN 49073.
USB-A output - Support of the charging protocols:
Apple MFI with 2.4 A, BC 1.2 DCP with 1.5 A.
USB-C output - supports the charging protocols:
USB PD (Power delivery) with 5 V / 3 A, Apple MFI with 2.4 A, BC 1.2
DCP with 1.5 A.
Rated current: 2.4 A if a type A jack is used.
Rated current: 1.5 A if both bushings are occupied.
Connection terminals according to VDE 0620-1 approved as connection terminals.
When cleaning the device, use dust protection cap 2098 for the USB-A connection.
Design line: Platform 63, future® linear, Busch-aXcent®, solo®, karat®
Design line Variant: Future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
This text is machine translated.
