Busch-Jaeger Multicolour 2CKA006710A0036 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

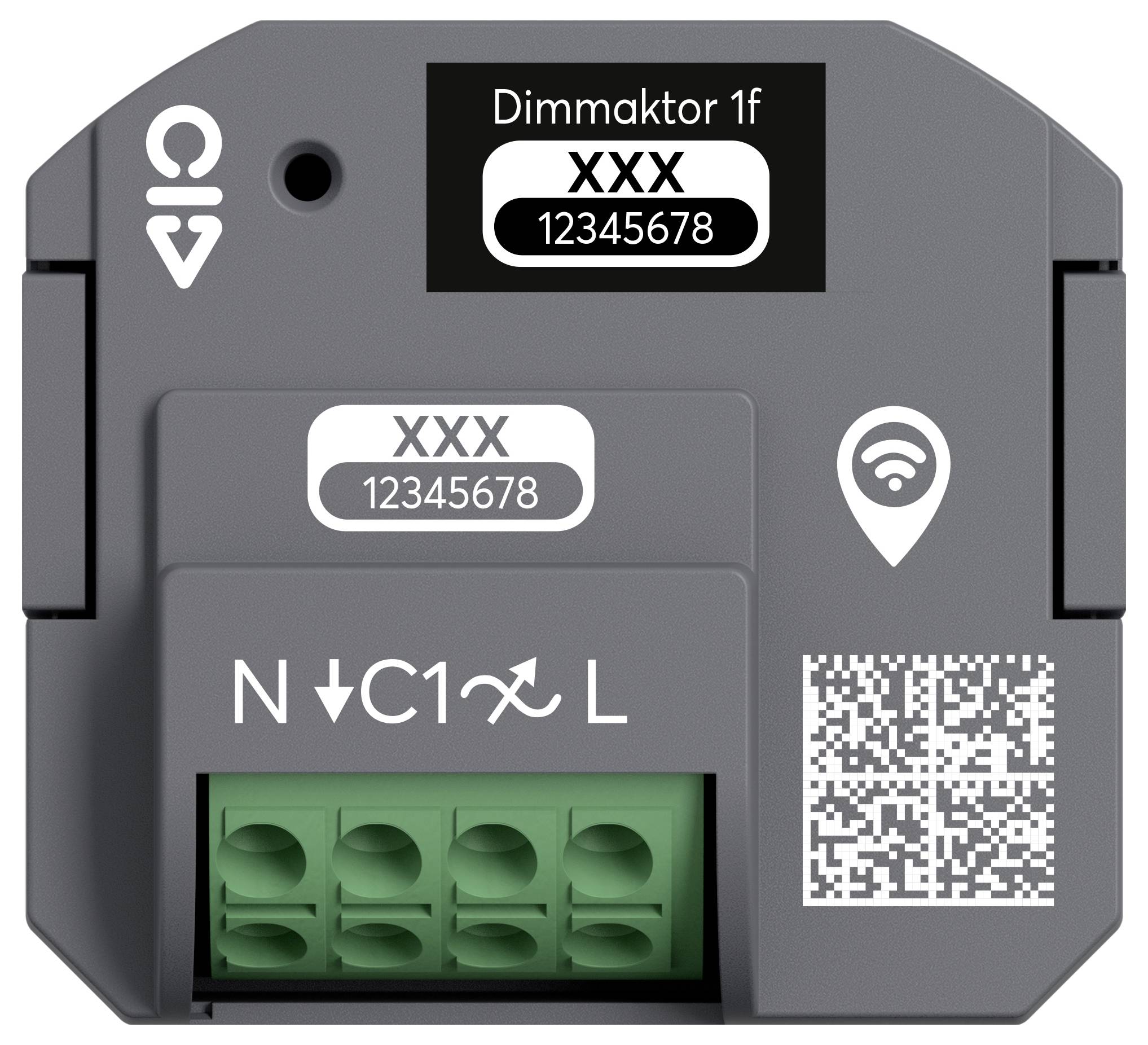

Busch-Jaeger dimming actuator 1-way UP wireless 62851 U-WL
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting type: Flush-mounted
- Protection class (IP) IP20
- Frequency: 50 Hz
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Other
- Max. Switching capacity LED 180 W
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- With LED display: Yes
- With bus connection: No.
- Bus module removable: No.
- Min Depth of the device socket 23 mm
- Number of outputs: 1
- Type
Busch-Jaeger dimming actuator 1-way UP wireless 62851 U-WL
- Product type
Switch product range
- Factory colour
Multicolour
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547279 Busch-Jaeger Multicolour 2CKA006710A0036 1 pc(s)
Description
Wireless flush-mounted actuators for dimming lighting systems.
Can be used in Busch-Flextronics® wireless single control as an independent renovation solution or wireless networked room control with up to 32 devices.
Can be integrated into Busch-free@home® wireless via System Access Point with up to 150 devices.
2-conductor connection technology (neutral conductor not required).
Neutral conductor optionally connectable (for connecting low loads, < 10 W/VA, recommended).
With push-in spring terminals.
With extension input.
Operation possible via conventional keys (e.g. 2020 US).
Can be combined with extension insert Flex, 64891 U.
Can be combined with Smart switch wireless 62721 U-WL and 62721/01 U-WL.
Remote control via Bluetooth via Smartphone/tablet APP.
Programming via Bluetooth with the Busch-free@home® Next APP or via the web interface of the system access point.
Optimised for dimming retrofit LED lights (Ledi).
For dimmable retrofit LED lamp (Ledi).
For dimmable retrofit LED bulbs (Ledi) with conventional or electronic transformers
For bulbs, 230 V halogen lamps, low voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy saving lamps.
Ledi mixed operation and conventional lamps are possible.
With adjustable operation mode via APP: Phase forward / phase section.
With adjustable minimum brightness via APP.
Low noise through the use of MOSFET-transistors.
Short circuit-proof and overload protected (electronic fuse).
Only in conjunction with standard UP equipment boxes to DIN 49073 Part 1
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
Can be used in Busch-Flextronics® wireless single control as an independent renovation solution or wireless networked room control with up to 32 devices.
Can be integrated into Busch-free@home® wireless via System Access Point with up to 150 devices.
2-conductor connection technology (neutral conductor not required).
Neutral conductor optionally connectable (for connecting low loads, < 10 W/VA, recommended).
With push-in spring terminals.
With extension input.
Operation possible via conventional keys (e.g. 2020 US).
Can be combined with extension insert Flex, 64891 U.
Can be combined with Smart switch wireless 62721 U-WL and 62721/01 U-WL.
Remote control via Bluetooth via Smartphone/tablet APP.
Programming via Bluetooth with the Busch-free@home® Next APP or via the web interface of the system access point.
Optimised for dimming retrofit LED lights (Ledi).
For dimmable retrofit LED lamp (Ledi).
For dimmable retrofit LED bulbs (Ledi) with conventional or electronic transformers
For bulbs, 230 V halogen lamps, low voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy saving lamps.
Ledi mixed operation and conventional lamps are possible.
With adjustable operation mode via APP: Phase forward / phase section.
With adjustable minimum brightness via APP.
Low noise through the use of MOSFET-transistors.
Short circuit-proof and overload protected (electronic fuse).
Only in conjunction with standard UP equipment boxes to DIN 49073 Part 1
Product line: Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
This text is machine translated.
