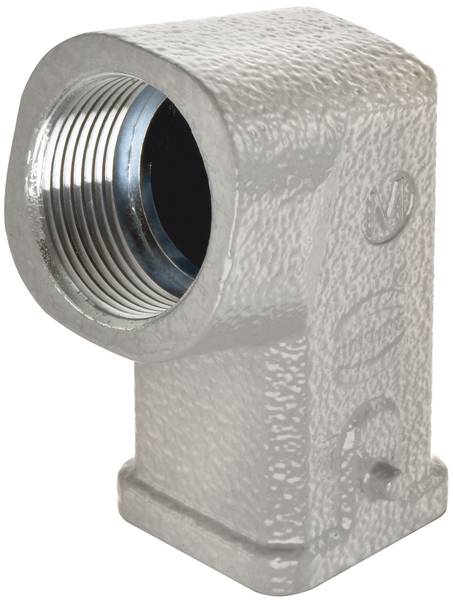

Bush enclosure 19 20 003 1645 19200031645 HARTING 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bush enclosure
Series
Han® A
Thread size
M25
Case material
Diecast zinc
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 9.5 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Standard casing for industrial applications
- Protection class according to IEC 60529: IP44;IP65 with sealing screw;IP67 with sealing screw
- Design size 3 A
- Approvals DNV GL
- Casing type: Sleeve casing
- Design: Side cable input
- Cable input: 1x M25
- Housing series: HAN A®
- Material housing: Zinc-Druckguss
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Protection class according to UL 50 / UL 50E: 12
- Packaging type
Piece
- Type
19 20 003 1645
- Product type
Bush enclosure
- Series
Han® A
- Manufacturer part #
19200031645
- Features
Longitudinal brace
- Thread size
M25
- Type
Lateral cable input
- Case material
Diecast zinc
- Series
Han A®
- Content
1 pc(s)
IP44
IP65
IP67
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Grey
Single locking lever
1
FALSE
FALSE
Zinc
Powder coating
-40-125 °C
Other
FALSE
FALSE
Plug case
IP44
Sideways
Base unit
Metric
Documents & Downloads
Datasheet
Datasheet 3007060 Bush enclosure 19 20 003 1645 19200031645 HARTING 1 pc(s) Piece
Datasheet 3007060 Bush enclosure 19 20 003 1645 19200031645 HARTING 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007060 Bush enclosure 19 20 003 1645 19200031645 HARTING 1 pc(s) Piece
Description
Sleeve housing, size: 3 A, longitudinal clamp, lateral cable input, 1x M25, Material housing: zinc die-cast, powder coated, RAL 7037 (dust-gray)
