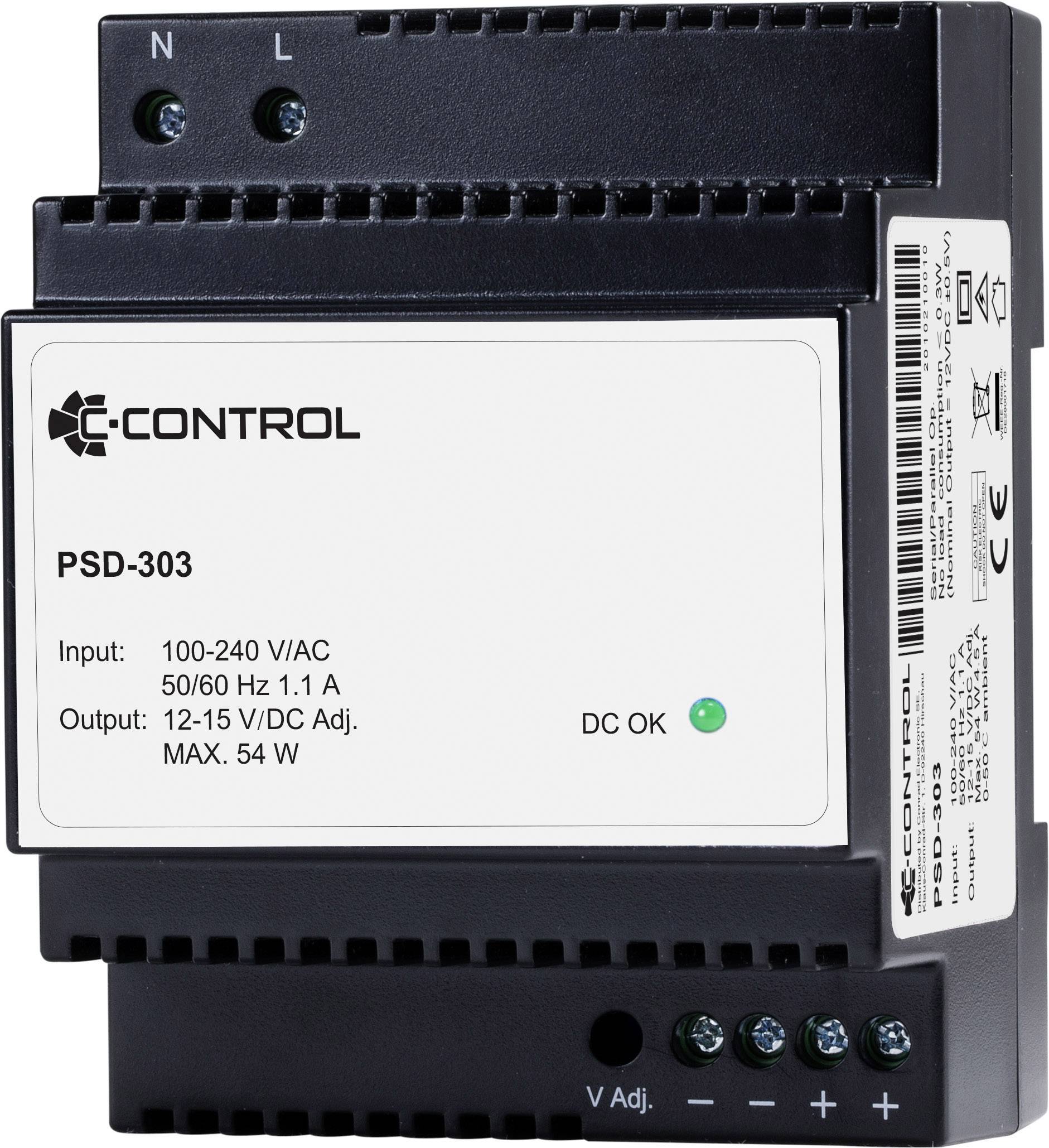

C-Control PSD-303 DIN RAIL POWER SUPPLY 12 V DC 4.5 A 54 W
EAN:
Part number:
Item no:
Highlights & Details
Din Rail Power Supply 12 V 54 W
- 12 V DC / 4.5 A
- 54 W DIN-Rail Power Supply
- Standby-Mode power consumption: 0.3 W
- 1-phased switched-mode power unit
- 12 - 15 V infinitely adjustable via potentiometer
- Low ripple : Less than 30 mV
- 100 % full load Burn-In-Test
Technical specifications
- Standby consumption<: 0.3 W.
- Ripple/noise:< 1% of the output voltage
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V AC
- Output voltage
12 V DC
- Input voltage (max.)
240 V AC
- Max. output current
4.5 A
- Output current (max.) - rounded
4.5 A
54 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Dim
(L x W x H) 91 x 71 x 57 mm
- Weight
250 g
- Output voltage (max.)
15 V DC
- Output voltage (min.)
12 V DC
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
50 °C
- Operating temperature (min.)
0 °C
- Manufacturer part #
PSD-303
- Content
1 pc(s)
- MTBF
350000 h
- Width
71 mm
- Height
57 mm
- Length
91 mm
IP20
- Type
PSD-303
- Consumption (standby)
0.3 W
- Efficiency
87 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1781113 C-Control PSD-303 DIN RAIL POWER SUPPLY 12 V DC 4.5 A 54 W
Conformity certificate
Conformity certificate 1781113 C-Control PSD-303 DIN RAIL POWER SUPPLY 12 V DC 4.5 A 54 W
Description
C-Control PSD-300 series DIN rail-mount power supply units come with a range of single phase switch modes, short circuit, overload and overvoltage protection and very low standby-mode power consumption (<0.3 W). 10-100W power ratings and a compact design make the PSD-300 series ideal for standard power sub distribution and smart home/building automation.
Features
- Hold-up time: 20 ms full Load, 230 V/AC
- Ripple / Noise: < 1% of Output Voltage
- Ramp-up time: < 10 ms @ 240 V/AC

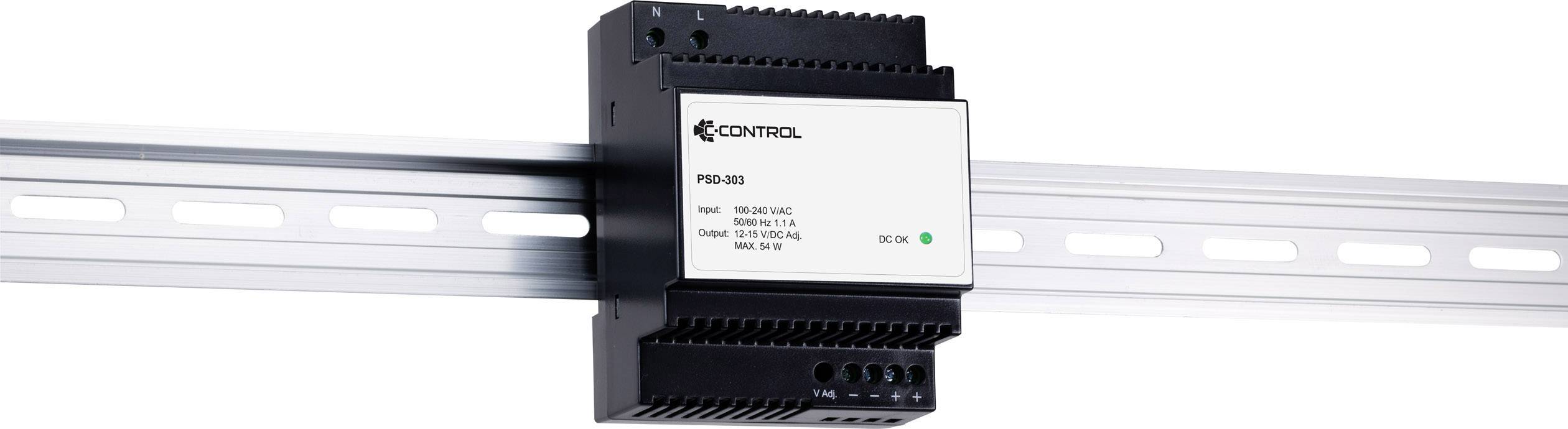

- DIN Rail: TS 35/7.5 or TS 35/15 vertical
Scope of delivery
- DIN rail power supply
- User manual
