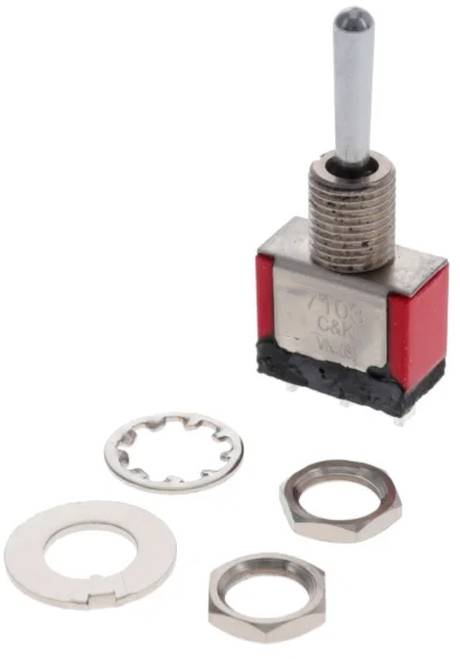

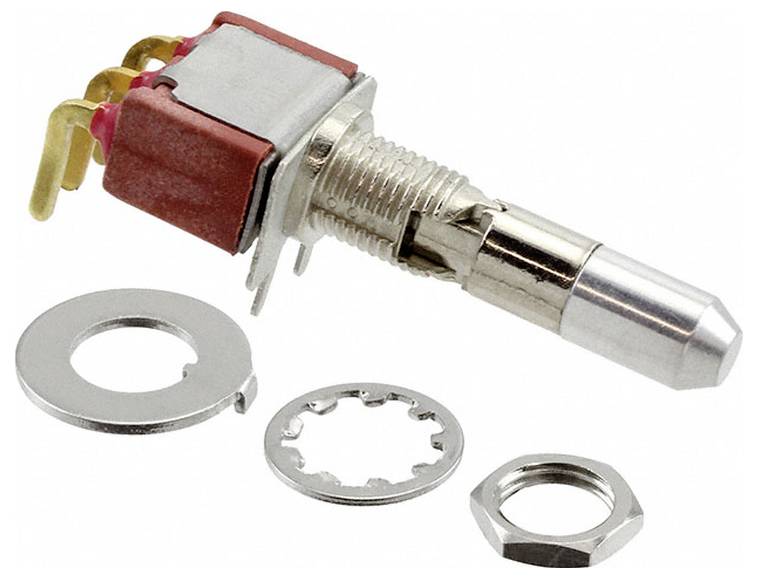

Image similar
C & K Switches 7103K2AV2BE Toggle Switch 7000 Series 20 V AC, 20 V DC 1 x On/Off/On 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Switch position
1 x On/Off/On
Connection
Solder pins (right-angle)
Switching voltage
20 V AC
20 V DC
Recess diameter
6.35 mm
Datasheet (PDF)
Highlights & Details
C&K toggle switch 7000 series 7103K2AV2BE
- ()
Our service for you
Technical specifications
- Contact type: SPDT
- Packaging type
Bulk
- Switch position
1 x On/Off/On
- Connection
Solder pins (right-angle)
- Switching voltage
20 V AC
20 V DC
- Length
17.88 mm
- Recess diameter
6.35 mm
- Electrical lifespan
40000
- RoHS-compliant
Yes
- Type
Toggle Switch 7000 Series
Documents & Downloads
Datasheet
Datasheet 3275428 C & K Switches 7103K2AV2BE Toggle Switch 7000 Series 20 V AC, 20 V DC 1 x On/Off/On 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3275428 C & K Switches 7103K2AV2BE Toggle Switch 7000 Series 20 V AC, 20 V DC 1 x On/Off/On 1 pc(s) Bulk
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
