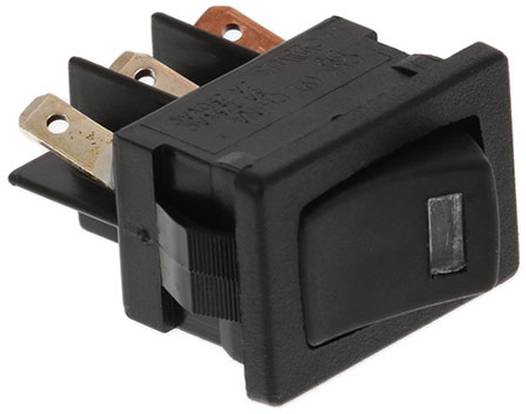

Image similar
C & K Switches DM14J72S205Q3 Rocker Switch DM Series 120 V AC 3 A 1 x On/Off 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Casing/button colour
Black
Lighting type
incl. lighting
Colour
Red
Switch position
1 x On/Off
Datasheet (PDF)
Highlights & Details
C&K Rocker switch DM series DM14J72S205Q3
Our service for you
Technical specifications
- Contact type: SPST
- Lighting voltage 2.1 VDC
- Packaging type
Bulk
- Casing/button colour
Black
- Lighting type
incl. lighting
- Colour
Red
- Bulb type
LED (monochrome)
- Switch position
1 x On/Off
- Print motif
None
- Connection
Type C CEE 7/16 plug 2.8 mm
- Switching voltage
120 V AC
- Switching current (max.)
3 A
- Electrical lifespan
10000
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Rocker Switch DM Series
Documents & Downloads
Datasheet
Datasheet 3278755 C & K Switches DM14J72S205Q3 Rocker Switch DM Series 120 V AC 3 A 1 x On/Off 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3278755 C & K Switches DM14J72S205Q3 Rocker Switch DM Series 120 V AC 3 A 1 x On/Off 1 pc(s) Bulk
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
