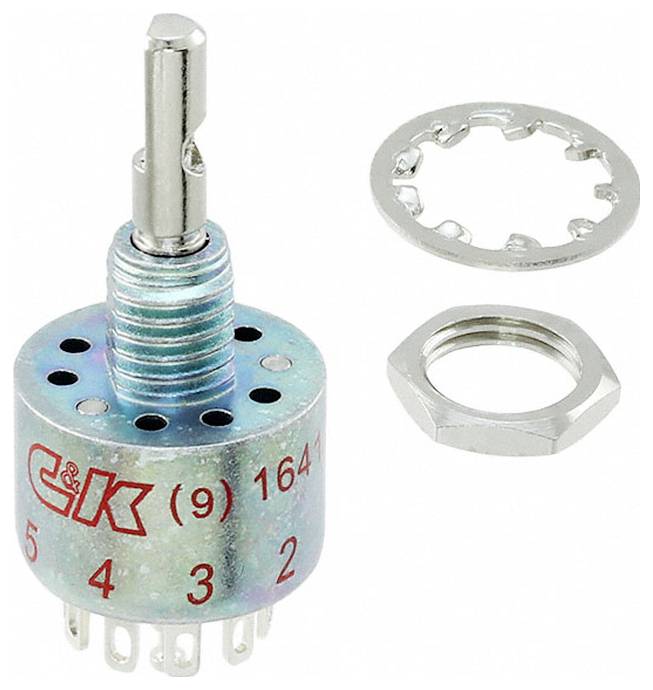

Image similar
Image similar
C & K Switches MA04L1NZQD Rotary-Switch M Series Rotary switch 125 V AC, 28 V DC Switch postions 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rotary switch
Operation type
oblate
Switch postions
4
Switching voltage
125 V AC
28 V DC
Lighting type
None
Datasheet (PDF)
Highlights & Details
C&K Rotary Switch M Series MA04L1NZQD
Our service for you
Technical specifications
- Electrical life: 10000
- Operating angle 36°
- Contact Timing: Non-Shorting (BBM)
- 10.16mm
- Switching per deck: SP4T
- 1
- Number of decks: 1
- Number of poles per deck: 1
- Depth behind the bezel: 14.86mm
- Product type
Rotary switch
- Operation type
oblate
- Lighting type
None
- Switch postions
4
- Contact material
Copper alloy silver plated
- Connection
Solder tag
- Switching voltage
125 V AC
28 V DC
- Axle Ø
3.17 mm
- Recess depth
14.86 mm
- Content
1 pc(s)
- Type
Rotary-Switch M Series
- RoHS-compliant
Yes
- Number of pins
4
