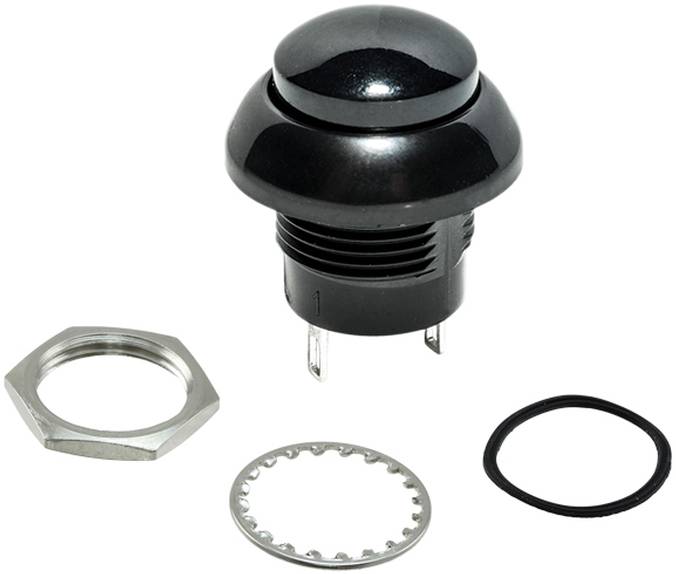

Image similar

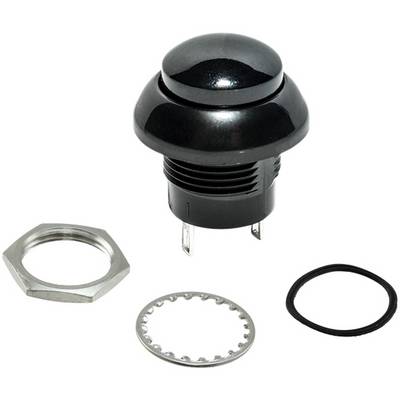

Image similar
C & K Switches PNP8E2D2Y03QE Push button PNP Series Pushbutton 32 V DC 1 x Off/(On)/On IP68 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)/On
Connection
Solder tag
Datasheet (PDF)
Highlights & Details
C&K push button PNP series PNP8E2D2Y03QE
Our service for you
Technical specifications
- Contact type: SPST NO
- Actuator type: Extended
- Packaging type
Bulk
- Product type
Pushbutton
- Casing/button colour
Black
- Lighting type
None
- Switch position
1 x Off/(On)/On
- Connection
Solder tag
- Switching voltage
32 V DC
- Recess diameter
12.30 mm
- Electrical lifespan
1000000
IP68
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Push button PNP Series
Documents & Downloads
Datasheet
Datasheet 3276375 C & K Switches PNP8E2D2Y03QE Push button PNP Series Pushbutton 32 V DC 1 x Off/(On)/On IP68 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3276375 C & K Switches PNP8E2D2Y03QE Push button PNP Series Pushbutton 32 V DC 1 x Off/(On)/On IP68 1 pc(s) Bulk
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
