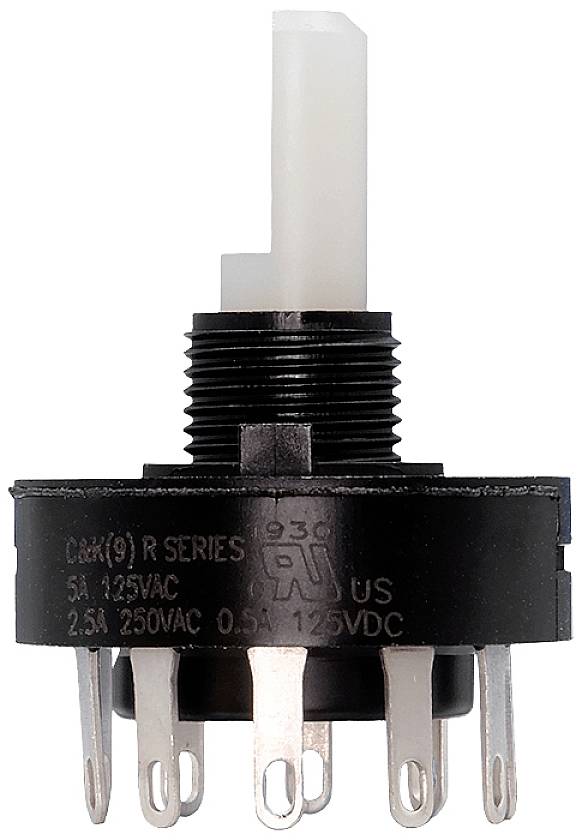

C & K Switches R10015RS02Q Rotary switch 125 V, 125 V DC 5 A Switch postions 10 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Rotary switch
Operation type
Screwdriver
Switch postions
10
Switching voltage
125 V
125 V DC
Datasheet (PDF)
Highlights & Details
C & K COMPONENTS R10015RS02Q
- Multi-pole and multi-positionPositive detentPanel and PCB mountingIndustrial equipmentPortable toolsCeiling fans
Our service for you
Technical specifications
- Index Stops: Continuous
- Contact Timing: Non-Shorting (BBM)
- Packaging type
Piece
- Product type
Rotary switch
- Functions
latch
- Operation type
Screwdriver
- Lighting type
None
- Switch position
1 x On/Off
- Switch postions
10
- Contact material
Copper
- Connection
Pins
- Switching voltage
125 V
125 V DC
- Switching current (max.)
5 A
- Min. temperature
-30 °C
- Max. temperature
+95 °C
- Recess depth
10.29 mm
- Content
1 pc(s)
- Type
R10015RS02Q
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2580797 C & K Switches R10015RS02Q Rotary switch 125 V, 125 V DC 5 A Switch postions 10 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2580797 C & K Switches R10015RS02Q Rotary switch 125 V, 125 V DC 5 A Switch postions 10 1 pc(s) Piece
Description
Rotary Switch, 10 Positions, SP10T, Latched, 0.5A, 125VDC, Solder Terminal, Screw Driver Slot Actuator, Through Hole-straight
