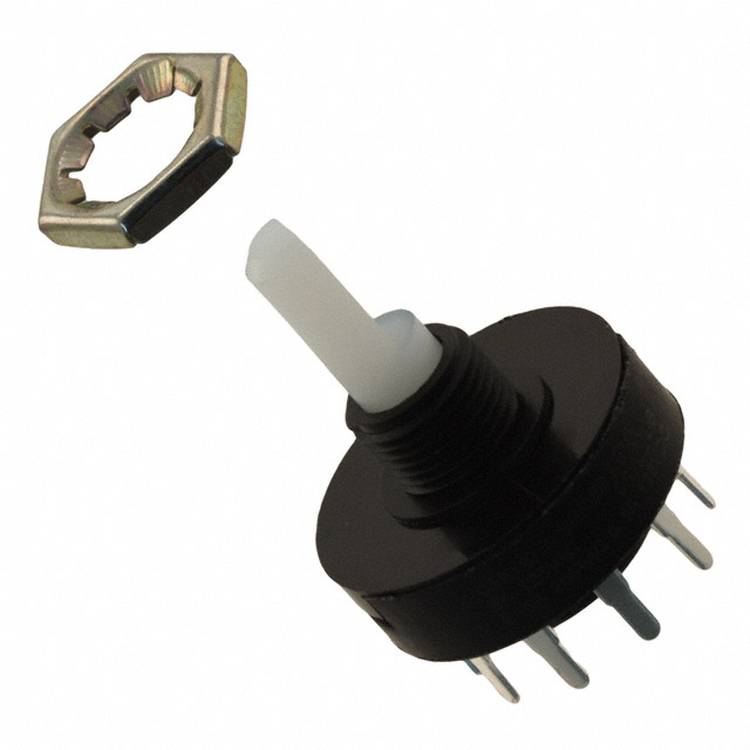

C & K Switches R20507RR02Q Rotary Switch R Series Rotary switch 125 V AC, 125 V DC 5 A Switch postions 5 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Rotary switch
Operation type
oblate
Switch postions
5
Switching voltage
125 V AC
125 V DC
Datasheet (PDF)
Highlights & Details
C&K Rotary Switch R Series R20507R02Q
Our service for you
Technical specifications
- Electrical life: 10000
- Operating angle 36°
- Contact Timing: Non-Shorting (BBM)
- 12 70 mm
- Switching per deck: DP5T
- 1
- Number of decks: 1
- Number of poles per deck: 2
- Depth behind the aperture: 10.29mm
- Packaging type
Piece
- Product type
Rotary switch
- Operation type
oblate
- Lighting type
None
- Switch postions
5
- Contact material
Copper silver plated
- Connection
Solder tag
- Switching voltage
125 V AC
125 V DC
- Switching current (max.)
5 A
- Axle Ø
6.35 mm
- Recess depth
10.29 mm
- Content
1 pc(s)
- Type
Rotary Switch R Series
- RoHS-compliant
Yes
- Number of pins
5
